Selecting the correct hardware is often the difference between a high-performing building and a maintenance nightmare. When a component fails, the consequences ripple outward immediately. You might face frozen coils during a winter cold snap, compliance violations from smoke control failures, or persistent efficiency losses that inflate utility bills. Many professionals mistakenly prioritize the lowest catalog price or basic torque ratings without considering the full operational context. While torque is the necessary starting point, the right choice relies heavily on control signals, environmental stressors, and specific fail-safe requirements.
This guide serves as a practical decision framework for engineers and facility managers. We will evaluate how to select a damper actuator based on technical reliability and total cost of ownership (TCO). Instead of relying on guesswork, you will learn to assess the complete application landscape. This approach ensures your systems run smoothly, reduces repeat maintenance calls, and protects critical infrastructure from avoidable downtime.
The 20% Rule: Always calculate Total Damper Torque (TDT) and add a minimum 20% safety margin to account for age and degradation.
Fail-Safe Logic: Determine if the application requires Spring Return (mechanical) or Electronic Fail-Safe based on critical safety needs (e.g., smoke control vs. comfort cooling).
Signal Compatibility: Match the actuator control input (On/Off, Floating, Modulating) strictly to the existing Building Automation System (BAS) or controller capabilities.
Environmental Context: High-heat applications (like boilers) and corrosive environments require specific IP ratings and thermal isolation considerations.
The most common cause of actuator failure is undersizing. An underpowered motor struggles to seal the damper against air pressure, leading to gear fatigue and eventual burnout. To avoid this, you must start with a precise calculation rather than a rough estimate.
You cannot rely solely on the damper manufacturer’s nominal torque without considering the specific installation. Use this formula to establish your baseline requirement:
Total Torque = (Damper Area × Torque Rating per sq. ft.) × Safety Factor
The Torque Rating per sq. ft. is a variable, not a constant. It fluctuates based on the damper’s physical construction. Opposed blade dampers generally require less torque than parallel blade versions. However, the seal type plays a massive role. Standard leakage seals induce moderate friction, while low-leakage seals—often found in energy-efficient buildings—create significant resistance. You must verify the specific friction coefficient of the seals before running your numbers.
Torque requirements change once the fans turn on. High-velocity air streams push against the blades, increasing the force needed to close the damper completely. System static pressure drops across the damper face create dynamic resistance.
If you ignore these forces, the actuator may close the damper partially but fail to seat it. This leads to hunting, where the actuator oscillates continuously as it fights the air pressure. Hunting causes excessive wear on the geartrain and internal potentiometer, significantly shortening the unit's lifespan.
Engineering best practices dictate applying a safety factor of 20% to 30% above your calculated requirement. New dampers move smoothly, but conditions deteriorate over time. Dirt accumulates on the linkages, corrosion roughens the bearings, and thermal expansion can warp the frame slightly.
This degradation stiffens the damper. Without that 20-30% buffer, an actuator that worked perfectly on day one will stall three years later. Investing in slightly more torque upfront is cheaper than replacing a burned-out motor down the road.
Once you determine the muscle (torque), you must select the brain (control signal). The actuator must speak the same language as your Building Automation System (BAS) or local controller.
Selecting the wrong signal type results in erratic behavior or complete incompatibility. Review the three primary control methods:
| Control Signal | Operation Logic | Best Application |
|---|---|---|
| Two-Position (On/Off) | Drives fully open or fully closed based on power presence. | Isolation dampers, exhaust fans, freeze protection. |
| Floating (3-Point) | Uses two inputs: one to drive open, one to drive closed. Stops when signal stops. | Non-critical zoning, VAVs where position feedback isn't critical. |
| Modulating (0-10 VDC / 4-20 mA) | Moves proportionally to an analog signal. Exact positioning. | VAV boxes, economizers, precision airflow control. |
Modulating control is mandatory for applications requiring precise temperature or pressure management. It allows the damper to hold at 45% or 72% open, matching airflow to actual demand.
What happens when the power goes out? The answer to this question often dictates the actuator's internal mechanics.
This is the industry standard for critical safety. A mechanical spring is wound tight as the motor drives the damper open. If power is cut, the spring releases its energy, forcing the damper to a safe position (fully open or fully closed). This is non-negotiable for smoke extraction, freeze protection, and combustion air intakes.
Modern capacitors store enough energy to drive the motor to a specific position during a power loss. These units are typically lighter and smaller than spring-return models. They offer the advantage of programmable fail positions (e.g., fail to 50%). However, capacitors age and require maintenance checks to ensure they still hold a charge.
In general ventilation zones, the damper position during a blackout might not matter. A non-spring return actuator simply stops moving when power is lost. These are cost-effective for comfort cooling applications where safety risks are minimal.
An actuator located in a pristine ceiling plenum faces different threats than one mounted on a rooftop unit or inside a boiler room. Ignoring environmental context leads to rapid housing degradation and electronic shorts.
Standard HVAC actuators typically carry ambient ratings between -22°F and 122°F. This range covers most commercial air handling units. However, industrial processes and heating plants push these limits.

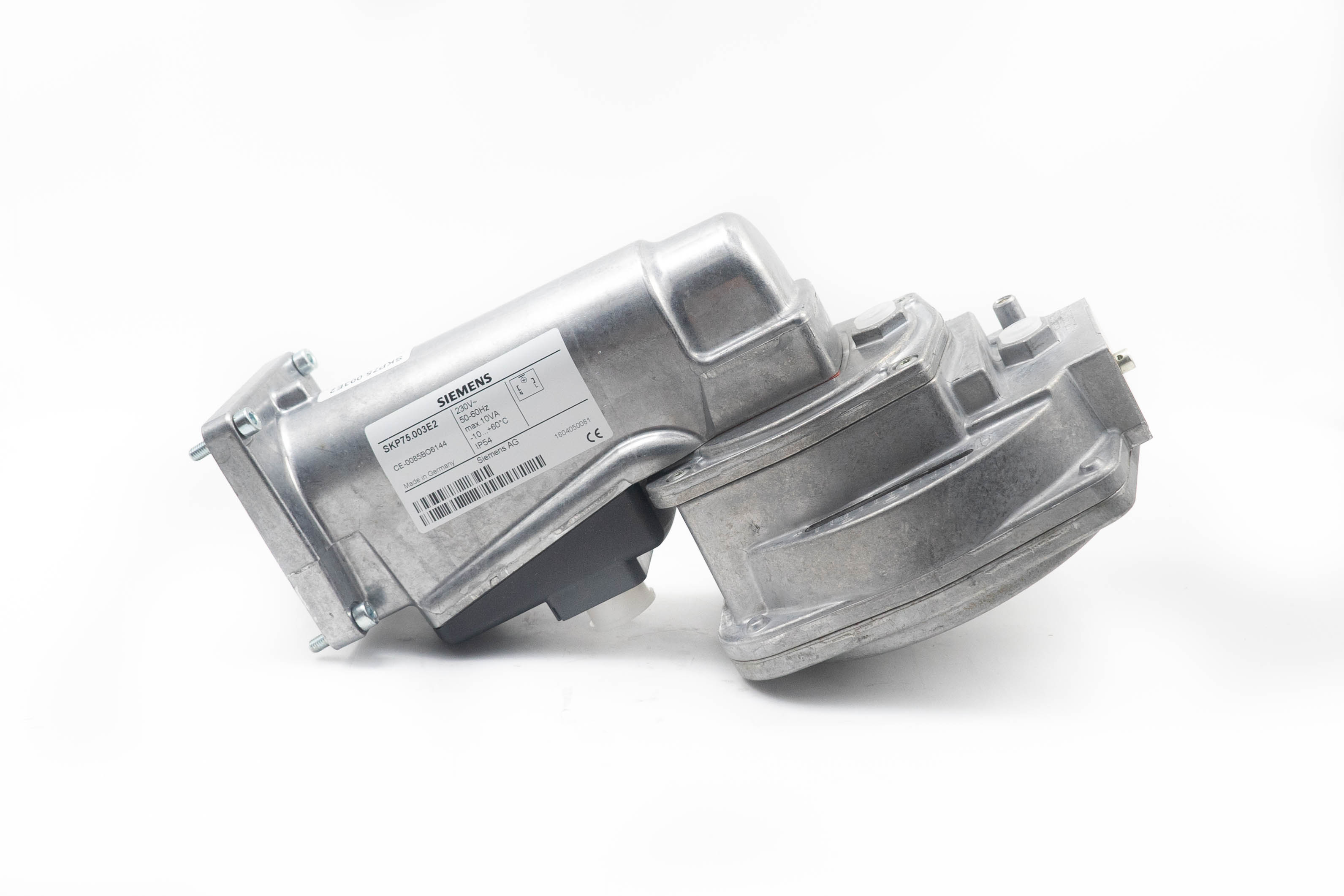

In high-temperature applications, heat travels. Thermal energy conducts from the hot air stream, through the damper shaft, and directly into the actuator coupling. This can cook the internal electronics even if the ambient room temperature is moderate. For systems situated near boilers or industrial burner fittings, the actuator must withstand proximity to high heat sources without failure. Recommendation: Use thermal isolation couplers or fiberglass stand-offs for any application exceeding 250°F to break the thermal bridge.
Moisture and dust destroy electronics. You must match the actuator's NEMA or IP rating to the location:
NEMA 1 / IP40: Suitable for indoor, clean environments like ceiling plenums or electrical closets. They offer protection against fingers and large debris but have zero water resistance.
NEMA 4 / IP66: Mandatory for outdoor air intakes, rooftop equipment, or wash-down areas. These housings are gasketed to prevent water ingress from rain or hose-directed streams.
Retrofit projects often present tight quarters. Replacing an actuator inside a VAV box typically involves working around existing ductwork and piping. Evaluate the footprint of the new unit. Direct-coupled actuators mount directly to the damper shaft, saving space. However, when replacing older pneumatic systems, you might need linkage kits (crank arms) to adapt the motion if the new electric motor cannot mount directly to the jackshaft.
The purchase price of the actuator is only one part of the cost. Complex installations drive up labor hours and increase the likelihood of installer error. Modern features can streamline the process significantly.
The connection between the motor and the damper shaft is the most common mechanical failure point. Basic U-bolts can slip if not torqued perfectly. Prioritize Self-Centering Shaft Adapters. These mechanisms clamp the shaft evenly from both sides, automatically aligning the actuator.
This reduces installation time and prevents the wobble that occurs with off-center mounting. A wobbling actuator puts cyclical stress on the gears, stripping them over time.
Review your wiring preferences before ordering. Pre-cabled actuators (with pigtails) are faster to install but require a junction box nearby. Terminal block models allow you to run conduit directly to the actuator housing, which can be cleaner in exposed installations.
Two distinct features aid commissioning:
Manual Override (Clutch Release): This button allows you to disengage the gears and move the damper manually. It is essential for testing damper freedom during rough-in, before power is available.
Near Field Communication (NFC): App-based commissioning is rising in popularity. Technicians can set voltage ranges, rotation limits, and feedback signals using a smartphone without opening the actuator housing or powering up the unit.
Maintenance is inevitable. If an actuator is buried behind piping or located 20 feet above the floor, simple checks become expensive projects requiring lifts. For hard-to-reach areas, consider remote-mounted actuators. You can mount the motor in an accessible location and use extended rod linkages or cable-operated systems to drive the damper. This foresight ensures future maintenance is possible without specialized equipment.
Cheap actuators often have high hidden costs. When calculating ROI, look at energy consumption and durability metrics rather than just the initial invoice.
Actuators don't just consume power when moving; they consume power to stay still. Analyze the Holding Torque power draw. Some older technology consumes significant wattage just to hold a position against the spring or air pressure. Efficient brushless DC motors significantly reduce this phantom load. While 3 watts vs. 8 watts seems negligible per unit, the difference adds up across hundreds of VAV boxes. Lower power draw also impacts infrastructure, allowing you to install more actuators per transformer.
Check the rated Full Stroke Cycles. A standard commercial unit might be rated for 60,000 cycles, while a premium industrial unit offers 100,000+. For modulating applications where the damper adjusts constantly, this cycle count depletes rapidly.
Brushless DC motors offer significantly longer life in these modulating applications compared to brushed motors. Brushed motors experience physical wear on the electrical contacts, leading to failure in high-duty-cycle environments.
The standard industry warranty is typically 5 years. This serves as a proxy for the manufacturer's confidence in their build quality. Be wary of unbranded imports offering 1-year warranties; they often lack the seal quality and gear precision required for commercial HVAC longevity.
Selecting the right damper actuator is a balancing act between torque, control precision, and environmental resilience. It is rarely the most expensive component in a system, yet its failure causes disproportionate disruption. By calculating accurate torque loads with a safety margin, respecting the thermal limits of the application, and matching the control signal to your BAS, you protect the building's efficiency.
The ultimate goal is the No Call-Back installation. Investing in correct sizing and higher IP ratings upfront eliminates expensive troubleshooting and emergency replacement labor down the road. We encourage you to create a standardized selection checklist for your facility. Using a consistent decision framework ensures every air handling unit receives the reliable actuation it requires.
A: Spring return actuators have a mechanical spring that forces the damper to a safe position (open or closed) immediately when power is cut. This is critical for safety applications like smoke control or freeze protection. Non-spring return actuators simply stay in their last position when power is lost (fail-in-place), which is acceptable for general ventilation zones where safety is not compromised by a loss of airflow control.
A: You must measure the damper area (width × height) and identify the seal type. Standard dampers typically require 5–7 in-lbs per square foot, while low-leakage dampers may require 7–10 in-lbs per square foot. Multiply the area by the estimated torque rating, then add a 20–30% safety factor for age-related stiffness. If the damper feels physically difficult to move by hand, assume a higher friction coefficient or consider repairing the linkage first.
A: Yes, this is a common retrofit. You will need to remove the pneumatic lines and cap them. Ensure the new electric actuator matches the torque requirements of the damper. You may need a retrofit linkage kit (crank arm and rod) if the electric actuator cannot mount directly to the shaft where the pneumatic piston was attached. You must also convert the control signal from pneumatic pressure (PSI) to electric (volts/mA) using a transducer if the controls remain pneumatic.
A: Yes, a modulating actuator requires a controller capable of outputting a proportional signal, typically 0-10 VDC or 4-20 mA. It cannot function correctly with a simple on/off thermostat or switch. The controller sends a variable voltage that corresponds to the desired percentage of openness (e.g., 5 Volts = 50% open). Ensure your BAS or room controller supports analog outputs before selecting a modulating unit.
A: Grinding noises usually indicate stripped gears or a loose shaft coupling. If the coupling slips, the motor spins while the shaft remains stationary, grinding the connection teeth. If the internal gears are stripped, the motor cannot transfer torque. This often happens when an actuator is undersized for the load or if the damper is physically jammed. Immediate replacement is usually required to prevent overheating or electrical shorts.
