How do
industrial burners maintain safety and efficiency? The answer lies in effective control systems. These systems regulate fuel, airflow, temperature, and pressure precisely.
In this post, you’ll learn about the purpose and importance of industrial burner control systems. We’ll explore their evolution from basic to advanced controls and how they improve performance.
Classification and Types of Industrial Burner Control Systems
Industrial burner control systems come in various types, each designed to meet specific operational needs and efficiency goals. Understanding these classifications helps in selecting the right industrial burner control solution for your application. The main types include simple On/Off control, step control, and modulating control systems.
Simple On/Off Control Systems: Operation and Use Cases
On/Off control systems are the most basic form of industrial burner control. They operate the burner in two states: fully on or completely off. When a monitored parameter, such as temperature or pressure, reaches a setpoint, the system switches the burner off. Conversely, when the parameter falls below a lower threshold, the burner turns back on.
This type of control is straightforward and cost-effective, often found in small-scale industrial burners or applications with low precision requirements. However, frequent cycling can cause temperature fluctuations and increased wear on components, impacting burner lifespan and fuel efficiency.
Step Control Systems: Multi-Stage Capacity Management
Step control systems offer more flexibility than On/Off types by enabling the burner to operate at multiple predefined capacity stages. Typically, these stages include off, low, medium, and high firing rates. The system transitions between these stages based on real-time demand, such as changes in temperature or pressure.
This multi-stage approach reduces cycling frequency, improves temperature stability, and enhances fuel efficiency compared to simple On/Off controls. Step control is well-suited for medium-sized industrial burner applications where better control is needed without the complexity of full modulation.
Modulating Control Systems: Continuous Adjustment for Efficiency
Modulating control systems represent the most advanced category, allowing continuous or near-continuous adjustment of the burner’s firing rate. These systems dynamically regulate fuel and airflow to match the exact process demand, optimizing combustion efficiency and minimizing energy consumption.
There are various subtypes of modulating controls, including mechanical, proportional, and electronic systems, each offering different levels of precision and responsiveness. Modulating control systems are ideal for large-scale industrial burners or processes requiring tight temperature control and energy optimization.
Comparison of Control System Types Based on Application Needs
| Control System Type | Operation Mode | Advantages | Suitable Applications |
| On/Off | Full On or Off | Simple, low cost | Small industrial burners, basic heating needs |
| Step Control | Multiple discrete firing stages | Improved stability, reduced cycling | Medium-sized burners, moderate control needs |
| Modulating Control | Continuous firing rate adjustment | High efficiency, precise control | Large burners, processes requiring tight temperature control |
Choosing the right industrial burner control system depends on factors like process complexity, desired efficiency, and budget. While On/Off systems suit simple applications, modulating controls offer superior performance for advanced industrial needs.
Tip: For applications requiring energy savings and precise temperature control, consider upgrading to modulating industrial burner control systems to optimize fuel consumption and reduce wear on equipment.
In-Depth Analysis of Industrial Burner Control Systems
Industrial burner control systems vary widely in design and complexity. Understanding their operation principles, advantages, and limitations can help you select the best industrial burner control solution tailored to your needs. Let’s explore the main types: On/Off, Step, and Modulating control systems, including their mechanical and electronic variations.
Operation Principles of On/Off Control Systems
On/Off control systems operate the burner in two states: fully on or completely off. They rely on sensors monitoring parameters such as temperature or pressure. When a setpoint is reached, the system shuts off the burner. If the parameter falls below a threshold, the burner reignites. This binary operation is simple and effective for basic industrial burner control panels but can cause frequent cycling.
Advantages and Limitations of On/Off Controls
Advantages:
Simple design and easy to implement
Low initial and maintenance costs
Suitable for small industrial burners with minimal control needs
Limitations:
Frequent cycling leads to wear and tear on components
Temperature and pressure fluctuations affect process stability
Higher fuel consumption compared to advanced systems
Step Control System Components and Functionality
Step control systems add stages to burner operation, typically including off, low, medium, and high firing rates. The industrial burner control unit adjusts fuel and airflow at each stage based on demand. Key components include:
Sensors for temperature and pressure
Step controller managing stage transitions
Fuel and air valves regulating flow at each step
This multi-stage approach reduces cycling and improves stability.
Benefits and Drawbacks of Step Control Systems
Benefits:
Better temperature control than On/Off systems
Reduced wear due to fewer on/off cycles
Moderate complexity and cost
Drawbacks:
Limited to discrete firing levels, not continuous adjustment
Less efficient than modulating systems in matching load demand
Proportional Modulating Control: Features and Performance
Proportional modulating controls adjust burner output within a range, not just steps. Using proportional valves or actuators, they regulate fuel and air based on sensor feedback. This allows smoother transitions and better efficiency. However, mechanical complexity can increase maintenance needs, and response speed may lag behind electronic systems.
Mechanical Modulating Control Systems: Operation and Suitability
Mechanical modulating systems use mechanical actuators and hydraulic components to control fuel and air flow. They are simpler and cost-effective for applications with stable thermal loads and moderate accuracy requirements. However, they may lack precision and have slower response times compared to electronic controls.
Electronic Modulating Control Systems: Advanced Features and Benefits
Electronic modulating systems represent the cutting edge in industrial burner control technology. They use digital controllers and software algorithms to continuously monitor and adjust combustion parameters. Benefits include:
High precision and fast response to load changes
Integration with industrial burner control software and automation systems
Enhanced safety through real-time diagnostics and alerts
Improved energy efficiency and emissions control
These systems often feature human-machine interfaces (HMIs) for easy monitoring and troubleshooting.
Selecting the Right Control System Based on Industrial Requirements
Choosing the ideal industrial burner control system depends on:
Application complexity and required precision
Size and capacity of the burner
Budget constraints and maintenance capabilities
Integration needs with existing industrial burner control equipment and software
Desired energy efficiency and emission standards compliance
For simple heating, On/Off controls may suffice. For better efficiency and reduced wear, step or proportional modulating controls are beneficial. For advanced processes demanding tight control and automation, electronic modulating systems are recommended.
Tip: When upgrading your industrial burner control system, consider electronic modulating controls with integrated software for real-time monitoring and energy optimization to maximize performance and reduce operational costs.
Key Components of Industrial Burner Control Systems
Industrial burner control systems rely on several essential components working together to ensure safe, efficient, and precise operation. Understanding these components helps in designing, troubleshooting, and maintaining effective industrial burner control solutions.
Sensors and Detectors: Monitoring Critical Parameters
Sensors are the eyes and ears of the industrial burner control system. They continuously monitor key parameters such as:
Temperature sensors track the heat within the combustion chamber or process.
Pressure sensors measure fuel and air pressures to maintain correct flow.
Flame detectors (UV, IR, or flame rod types) confirm the presence and stability of the flame.
By providing real-time data, these sensors enable the industrial burner control unit to make timely adjustments and detect unsafe conditions early.
Fuel and Air Valves: Precise Flow Regulation
Fuel and air valves regulate the flow of combustible gas or liquid fuel and combustion air. These valves must operate with high precision to maintain the optimal fuel-to-air ratio, which is critical for efficient combustion and reduced emissions. Types of valves include:
Proper coordination between these valves is a cornerstone of industrial burner control system design.
Controllers and Actuators: Executing Control Logic
The controller acts as the system’s brain by processing sensor inputs and executing control algorithms. It sends commands to actuators that adjust valves, dampers, and ignition systems. Controllers can be:
Actuators convert electrical signals into mechanical movements, enabling precise control over fuel and airflow.
Safety Interlocks and Flame Safeguards
Safety interlocks prevent hazardous conditions by enforcing strict operational limits. Flame safeguards continuously monitor the flame presence, initiating an immediate shutdown if the flame is lost. Common safety features include:
Automated shutdown on flame failure
Fuel valve lockout during unsafe conditions
Manual override switches for emergency control
These components are vital for compliance with safety standards and protecting both personnel and equipment.
Human-Machine Interface (HMI) for Monitoring and Control
The HMI provides operators with a user-friendly interface to monitor burner status, adjust settings, and troubleshoot issues. Modern industrial burner control panels often feature:
Integration with industrial burner control software enhances remote monitoring and automation capabilities, improving overall operational efficiency.
Tip: Regularly inspect and calibrate sensors and safety interlocks to maintain reliable industrial burner control system performance and ensure compliance with safety standards.
Safety and Compliance in Industrial Burner Control Systems
Industrial burner control systems play a crucial role in ensuring safety and regulatory compliance in industrial operations. They integrate advanced safety features to protect personnel, equipment, and the environment from combustion hazards. This section explores the role of burner management systems (BMS), their integration with combustion control systems (CCS), compliance with industry standards like NFPA, essential safety features, and how these systems mitigate common risks.
Role of Burner Management Systems in Safety
Burner management systems are the backbone of industrial burner safety. They automate the startup, operation, and shutdown sequences to prevent unsafe conditions. A BMS continuously monitors critical parameters such as flame presence, fuel pressure, airflow, and temperature. If any abnormality arises—like flame failure or pressure deviations—the system triggers immediate shutdowns to avoid accidents such as explosions or gas leaks.
By enforcing strict operational protocols, BMS ensures that combustion only occurs when all safety conditions are met. It uses safety interlocks and flame safeguards to detect faults early and respond swiftly. This automation reduces human error, a common cause of industrial accidents, and enhances overall system reliability.
Integration with Combustion Control Systems for Safe Operation
Burner management systems work hand-in-hand with combustion control systems. While the BMS focuses on safety and emergency responses, the CCS optimizes fuel and air mixture for efficient combustion. This integration allows seamless control over burner operation, balancing safety and performance.
For example, during normal operation, the CCS modulates fuel and airflow to match process demands. Meanwhile, the BMS monitors safety parameters in the background. If the BMS detects unsafe conditions, it overrides the CCS to shut down the burner immediately. This tight coupling ensures safe, efficient, and reliable burner operation.
Compliance with Industry Standards and Codes (e.g., NFPA)
Compliance with industry standards like the National Fire Protection Association (NFPA) codes is mandatory for industrial burner control systems. NFPA 85, 86, and 87 provide guidelines for boiler and combustion system safety, including burner management system design, installation, and operation.
These standards require features such as:
Safety interlocks to prevent ignition under unsafe conditions
Redundancy in critical sensors and controls
Structured startup and shutdown sequences
Regular testing and maintenance protocols
Adhering to these codes protects facilities from legal liabilities and enhances operational safety. Many industrial burner control manufacturers design their systems to meet or exceed NFPA requirements.
Safety Features: Automated Shutdowns and Manual Overrides
Industrial burner control systems include multiple safety features to protect operations:
Automated shutdowns: Immediate fuel cutoff triggered by flame loss, overpressure, or sensor failure.
Safety interlocks: Prevent unsafe startup or operation by verifying all parameters are within limits.
Manual overrides: Allow trained operators to intervene during emergencies or maintenance.
Alarm systems: Notify operators of faults or unsafe conditions promptly.
These layers of protection ensure rapid response to hazards while maintaining operator control when needed.
Common Safety Risks and How Control Systems Mitigate Them
Industrial burners face several safety risks, including:
Flame failure: Can cause unburned fuel accumulation and explosion risk. BMS detects flame loss and shuts fuel valves immediately.
Overpressure: Excess fuel or air pressure can damage equipment. Pressure sensors trigger shutdowns to prevent damage.
Gas leaks: Faulty valves or pipes may leak fuel. Control systems monitor valve status and flow rates to detect leaks early.
Overheating: Excessive temperatures threaten equipment integrity. Temperature sensors and safety limits enforce shutdowns before damage occurs.
By continuously monitoring these parameters and acting swiftly, industrial burner control systems significantly reduce the likelihood of accidents.
Tip: Regularly test and maintain your burner management system’s safety interlocks and flame safeguards to ensure reliable operation and compliance with NFPA safety standards.
Advanced Control Strategies for Industrial Burners
Advanced control strategies in industrial burner control systems are essential for optimizing combustion efficiency, enhancing safety, and reducing operational costs. These strategies leverage modern industrial burner control technology, including sensors, actuators, and software integration, to fine-tune burner performance in real time.
Oxygen Trim Control for Optimal Combustion Efficiency
Oxygen trim control is a closed-loop system that continuously monitors the oxygen level in flue gases. By using an oxygen sensor, the industrial burner control unit adjusts the fuel-to-air ratio to maintain optimal combustion. This precise control reduces excess air, minimizing fuel waste and lowering emissions. Oxygen trim is especially beneficial in applications requiring strict emission standards and energy savings.
Fan Speed Control and Variable Airflow Management
Fan speed control manages the combustion air supplied to the burner by varying the speed of the combustion fan. Variable frequency drives (VFDs) or other industrial burner control components adjust fan speed to match combustion demand. This approach ensures the correct airflow, improving combustion stability and increasing turn-down ratios. Additionally, reducing fan speed saves electrical energy, contributing to overall operational efficiency.
Boiler Sequencing and Lead/Lag Control for Multi-Burner Systems
In facilities with multiple industrial burners, boiler sequencing or lead/lag control optimizes burner utilization. The industrial burner control system software coordinates burner startup and shutdown based on load demand. Lead burners operate primarily, while lag burners remain on standby. This sequencing balances burner runtime, reduces wear, and enhances energy efficiency by preventing unnecessary burner operation.
Modulating Burner Control for Real-Time Demand Adjustment
Modulating control systems continuously adjust fuel and air flow to match real-time process requirements. By avoiding the binary On/Off operation, modulating control reduces cycling and maintains stable temperatures. This advanced industrial burner control automation improves fuel efficiency, extends equipment lifespan, and maintains product quality in temperature-sensitive processes.
Benefits of Software Integration and Data Analytics
Modern industrial burner control solutions often include software integration for data collection and analysis. Industrial burner control software platforms enable remote monitoring, predictive maintenance, and performance optimization. Data analytics help identify inefficiencies, predict failures, and guide maintenance schedules. This integration transforms burner control into a smart system, boosting reliability and reducing downtime.
Tip: Incorporate oxygen trim and fan speed control in your industrial burner control system to achieve significant fuel savings and reduce emissions while enhancing combustion stability.
Optimizing Energy Consumption and Operational Efficiency
Optimizing energy consumption is a key goal for any industrial burner control system. Efficient control not only lowers fuel costs but also reduces emissions and extends equipment lifespan. Let’s explore how advanced industrial burner control solutions contribute to these benefits.
Impact of Control Systems on Fuel Savings and Emissions Reduction
Modern industrial burner control systems precisely regulate fuel and air flow, ensuring optimal combustion. This precise control minimizes excess air, which is a common cause of wasted fuel and higher emissions. For example, electronic modulating industrial burner control units adjust the fuel-to-air ratio in real time, reducing fuel consumption by up to 3-5% compared to traditional systems.
Moreover, integrating oxygen trim control further enhances combustion efficiency. By continuously measuring oxygen levels in flue gases, the system fine-tunes the air supply to maintain the ideal combustion mix. This reduces nitrogen oxide (NOx) and carbon monoxide (CO) emissions, helping industries meet environmental regulations.
Maximizing Burner Turn-Down Ratios to Minimize Cycling
Turn-down ratio refers to the range between a burner’s maximum and minimum firing rates. Higher turn-down ratios allow burners to operate efficiently at low loads without frequent on/off cycling. Frequent cycling wastes energy and accelerates wear on components like ignition systems and valves.
Industrial burner control panels with variable speed fan controls and electronic modulation can achieve turn-down ratios of 10:1 or more. This flexibility reduces the number of cold starts and purges, saving fuel and lowering maintenance costs.
Reducing Wear and Extending Equipment Lifespan
Efficient burner control reduces mechanical and thermal stress on components. Smooth modulation avoids sudden temperature swings, which can cause cracking or warping in combustion chambers. Fewer start-stop cycles mean less wear on ignition electrodes, fuel valves, and actuators.
Regular industrial burner control maintenance, including calibration of sensors and valves, ensures the system operates within design parameters. This preventive approach extends equipment life and reduces unplanned downtime.
Integration with Building Management Systems (BMS) for Smart Energy Use
Advanced industrial burner control solutions often integrate with Building Management Systems (BMS). This integration enables centralized monitoring and control of energy use across multiple burners and other equipment.
Through industrial burner control software, operators can analyze real-time data, schedule maintenance, and optimize burner sequencing. BMS integration supports demand-based operation, reducing energy waste during low-load periods and improving overall plant efficiency.
Case Studies Demonstrating Energy Optimization
Chemical Plant Upgrade: After retrofitting with electronic modulating industrial burner control units and oxygen trim, the plant reported a 7% reduction in fuel use and a 15% drop in NOx emissions.
Power Generation Facility: Implementing fan speed control and boiler sequencing reduced burner cycling by 40%, extending equipment lifespan and lowering maintenance costs.
Manufacturing Site: Integration of burner controls with BMS enabled remote diagnostics, leading to quicker troubleshooting and a 10% decrease in energy consumption.
Tip: Regularly assess your industrial burner control system’s turn-down capability and consider upgrading to electronic modulation and BMS integration to maximize energy savings and reduce operational costs.
Installation, Maintenance, and Future Trends in Industrial Burner Controls
Proper installation and maintenance of industrial burner control systems are vital to ensure safety, reliability, and optimal performance. As technology evolves, understanding best practices and emerging trends helps industries future-proof their operations.
Best Practices for Installing Industrial Burner Control Systems
Successful installation starts with thorough planning and site assessment. Key steps include:
Component Placement: Position sensors, valves, and control panels for easy access and protection from harsh environments.
Wiring and Connections: Use high-quality cables and ensure secure, labeled connections to prevent faults.
System Integration: Coordinate with existing industrial burner control equipment and building management systems for seamless communication.
Testing and Commissioning: Perform comprehensive tests covering safety interlocks, flame detection, and control logic before full operation.
Following manufacturer guidelines and consulting experienced industrial burner control manufacturers can reduce installation errors and downtime.
Routine Maintenance and Troubleshooting Techniques
Regular maintenance keeps industrial burner control systems operating efficiently and safely. Essential tasks include:
Sensor Calibration: Check and calibrate temperature, pressure, and flame detectors to ensure accurate readings.
Valve and Actuator Inspection: Verify smooth operation and absence of leaks or mechanical wear.
Control Panel Checks: Inspect controllers, relays, and wiring for signs of damage or corrosion.
Software Updates: Keep industrial burner control software current to benefit from improved features and security.
Troubleshooting: Use diagnostic tools and logs to identify issues such as flame failure, sensor faults, or valve malfunctions quickly.
Routine maintenance reduces unexpected failures and extends equipment lifespan.
Upgrading Existing Systems to Modern Electronic Controls
Many facilities benefit from upgrading legacy burner control systems to advanced electronic modulating controls. Advantages include:
Higher Precision: Electronic controls offer finer modulation of fuel and air flow.
Improved Safety: Real-time diagnostics and automated shutdowns enhance protection.
Energy Efficiency: Better combustion control reduces fuel consumption and emissions.
Integration Capabilities: Modern systems easily connect with industrial burner control software and building management systems.
Upgrades may involve replacing mechanical cams with servo motors and installing digital controllers. A phased approach minimizes operational disruptions.
Emerging Technologies: AI and IoT Integration in Burner Controls
Artificial intelligence (AI) and the Internet of Things (IoT) are transforming industrial burner control technology:
Predictive Maintenance: AI analyzes sensor data to predict component failures before they occur.
Remote Monitoring: IoT-enabled devices allow operators to track burner performance from anywhere.
Adaptive Control: AI algorithms dynamically optimize combustion parameters for varying loads and fuel qualities.
Data Analytics: Advanced software provides insights to improve efficiency and reduce downtime.
These technologies enhance automation and decision-making, driving smarter industrial burner control solutions.
Future-Proofing Your Industrial Burner Control System
To ensure longevity and adaptability:
Choose Modular Designs: Allow easy upgrades and component replacements.
Prioritize Open Protocols: Facilitate integration with diverse control and monitoring systems.
Invest in Training: Equip staff with skills to manage advanced controls and software.
Plan for Scalability: Select systems that accommodate future capacity or technology expansions.
Proactive planning safeguards your investment and maintains competitive operational performance.
Tip: Schedule regular maintenance and consider phased upgrades to electronic controls to maximize your industrial burner control system’s safety, efficiency, and adaptability for future technologies.
Conclusion
Industrial burner control systems range from simple On/Off to advanced modulating controls, each offering unique benefits. Choosing the right system depends on process needs, efficiency goals, and budget constraints. Advanced controls improve fuel savings, safety, and emissions reduction, supporting sustainable operations. Optimizing burner performance involves integrating sensors, software, and maintenance practices.

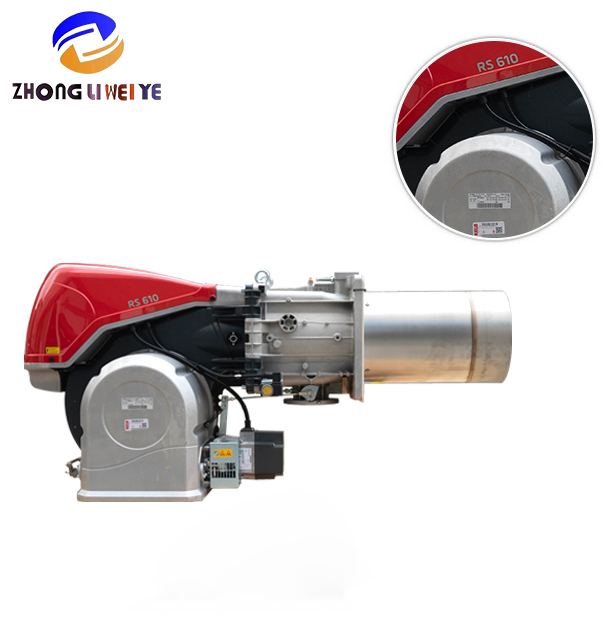

Shenzhen Zhongli Weiye Electromechanical Equipment Co., Ltd. provides reliable industrial burner control products that enhance efficiency, safety, and adaptability for modern industrial demands.
FAQ
Q: What are the main types of industrial burner control systems?
A: Industrial burner control systems are primarily classified into On/Off, Step, and Modulating control systems. On/Off systems operate the burner fully on or off, Step controls manage multiple firing stages, and Modulating controls allow continuous adjustment for optimal efficiency. Choosing the right system depends on application size, precision needs, and budget.
Q: How does an industrial burner control panel contribute to safety?
A: The industrial burner control panel integrates sensors, flame detectors, and safety interlocks to monitor combustion parameters. It ensures safe operation by triggering automated shutdowns during flame failure or unsafe conditions, complying with standards like NFPA, and allowing manual overrides for emergencies.
Q: What benefits does industrial burner control automation offer?
A: Automation in industrial burner control enhances fuel efficiency, reduces emissions, minimizes wear by preventing frequent cycling, and improves process stability. Advanced systems with electronic modulation and software integration enable real-time monitoring, predictive maintenance, and energy optimization.
Q: How can industrial burner control troubleshooting improve system reliability?
A: Troubleshooting involves inspecting sensors, valves, and control units for faults such as flame loss or sensor errors. Using diagnostic tools and logs helps quickly identify issues, reducing downtime. Regular maintenance and calibration of components are essential for reliable industrial burner control system performance.
Q: Why is industrial burner control system design important for energy efficiency?
A: Proper industrial burner control system design ensures precise regulation of fuel and air flow, optimal combustion, and integration of components like oxygen trim and variable fan speed controls. This design reduces fuel consumption, lowers emissions, and extends equipment lifespan, maximizing operational efficiency.
