A pressure switch is a vital safety component in industrial burner systems, designed to monitor and regulate pressure levels within the system. It plays an essential role in ensuring the burner operates safely and efficiently by activating or deactivating the system when certain pressure thresholds are exceeded or not met. By preventing hazardous conditions such as overpressure, underpressure, and system failures, pressure switches help protect both the equipment and the people working with it.
In this article, we will explain what a pressure switch does, introduce related terms such as pressure threshold, setpoint, and pressure monitoring, and discuss how pressure switches help prevent dangerous conditions in combustion systems.
What is a Pressure Switch?

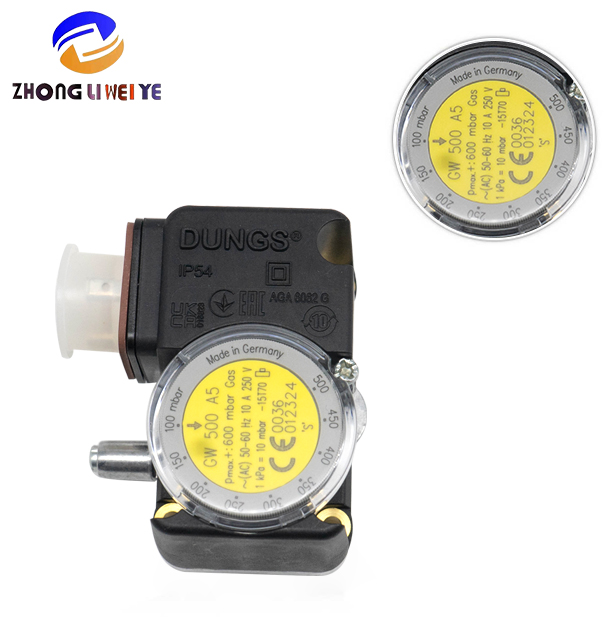

A pressure switch is an electromechanical device used to monitor the pressure of gas or liquid in a system. It activates a mechanism to either open or close a contact when the pressure exceeds or drops below a preset level, known as the setpoint. In industrial burner systems, pressure switches are used to monitor various pressure points within the system—such as the fuel supply line, combustion chamber, or air intake system—and to ensure that pressure stays within safe operational limits.
Activation: When the pressure reaches the setpoint or exceeds the threshold, the pressure switch either activates an alarm, shuts down the system, or triggers another safety measure.
Prevention of System Failures: By regulating pressure levels, the pressure switch prevents issues such as overpressure (which could cause system rupture) or underpressure (which could lead to incomplete combustion or burner shutdown).
How Does a Pressure Switch Work?
The pressure switch works by monitoring the pressure in a specific part of the burner system. It typically includes the following components:
Pressure Sensing Element: This is the part of the switch that detects the pressure. It can be a diaphragm, piston, or spring that moves in response to changes in pressure.
Setpoint Adjustment: The switch has an adjustable setpoint, which defines the maximum and minimum allowable pressures. When the pressure reaches this level, the switch triggers an action.
Electrical Contacts: Once the setpoint is reached, the sensing element triggers electrical contacts, either opening or closing them, to activate a circuit or alarm.
Action Trigger: Depending on the system design, the pressure switch might activate a safety feature, such as shutting off the burner, stopping the fuel supply, or sending an alert to operators for manual intervention.
Key Terms Related to Pressure Switches
To understand how pressure switches work and their role in burner systems, it’s important to be familiar with some key terms associated with their operation:
Pressure Threshold
Pressure threshold refers to the specific pressure levels at which a pressure switch is set to trigger an action. It represents the boundary at which the system is deemed to be operating outside of safe limits. The threshold is typically set based on the design specifications of the burner system and the type of fuel being used.
High Pressure Threshold: When the system’s pressure exceeds the upper threshold, it may indicate potential overpressurization, which can lead to dangerous system failures such as leaks, ruptures, or explosions.
Low Pressure Threshold: If the pressure drops below the lower threshold, it could signal an issue with fuel delivery, airflow, or system malfunction, which could result in incomplete combustion, flame instability, or shutdown.
Setpoint
Setpoint is the preset pressure level at which the pressure switch will trigger an action (such as turning off the system or sounding an alarm). The setpoint is a critical parameter in ensuring the burner operates within safe pressure limits.
Adjustable Setpoint: Some pressure switches allow for manual or automatic adjustment of the setpoint to adapt to varying operational conditions, making them versatile in different types of burner systems.
Importance of Correct Setpoint: Setting the correct setpoint is crucial. A setpoint that is too high can lead to overpressure, while a setpoint that is too low can result in insufficient fuel or air flow, leading to unsafe or inefficient combustion.
Pressure Monitoring
Pressure monitoring is the continuous process of tracking the pressure in a burner system. Pressure switches are integral to this process, providing real-time pressure data and triggering actions when pressure goes beyond safe limits.
Importance of Pressure Monitoring: Pressure monitoring ensures that the burner operates within the desired pressure range. Continuous monitoring prevents system failures and alerts operators to issues before they cause damage, such as flame loss or excess emissions.
How Pressure Switches Protect Burner Systems
Pressure switches play a critical role in maintaining the safe and efficient operation of industrial burner systems. Here’s how they protect the system:
1. Preventing Overpressure
Overpressure can cause significant damage to a combustion system, including equipment rupture, gas leaks, and safety hazards. A pressure switch monitors the pressure in key areas, such as the fuel lines or combustion chamber. When pressure exceeds the safe threshold, the pressure switch triggers a shutdown or activates safety measures to reduce pressure, preventing damage to the system.
Example: In a natural gas burner, if the gas pressure in the supply line becomes too high, it can result in over-pressurization, potentially damaging valves, pipes, or seals. The pressure switch detects this and prevents further damage by shutting off the fuel supply or activating a pressure release valve.
2. Preventing Underpressure
Underpressure can also pose problems, as it can lead to incomplete combustion, flame failure, or unstable burner operation. By constantly monitoring the pressure, a pressure switch ensures that the fuel and air are delivered at the correct pressure levels for stable combustion. If the pressure falls below the safe threshold, the system is alerted, and the burner can be shut down to prevent unsafe operation.
Example: If the pressure drops in a gas burner system, it could mean insufficient gas flow, resulting in weak or inconsistent flames. A pressure switch detects this condition and prevents ignition or burner operation until pressure is restored to a safe level.
3. Enhancing Operational Efficiency
Pressure switches help maintain consistent pressure levels, which is vital for ensuring the burner operates efficiently. When pressure is too high or too low, combustion can become inefficient, leading to excessive fuel consumption and increased emissions. By regulating the pressure, the switch helps optimize the fuel-to-air ratio, ensuring the burner operates at peak efficiency and reducing unnecessary energy waste.
4. Increasing Safety
By preventing overpressure and underpressure situations, pressure switches contribute to the overall safety of the burner system. They prevent situations where unsafe conditions could arise, such as pressure-related malfunctions or system failures. The ability to automatically shut down the burner or activate safety features ensures that operators are protected from potentially dangerous situations.
Conclusion
A pressure switch is an indispensable component in industrial burner systems, playing a vital role in regulating pressure, ensuring safe operation, and optimizing combustion efficiency. By monitoring key parameters such as pressure threshold, setpoint, and pressure monitoring, pressure switches help prevent dangerous conditions like overpressure and underpressure, ensuring that the burner operates safely and efficiently.
Pressure switches offer peace of mind by reducing the risks of equipment failure, flame instability, and operational downtime. Their ability to trigger safety measures or shutdowns when pressure levels go beyond safe limits makes them essential for maintaining safety in combustion systems.
Whether in industrial burners, boilers, or combustion chambers, pressure switches are crucial for ensuring safe, reliable, and efficient burner operation.
