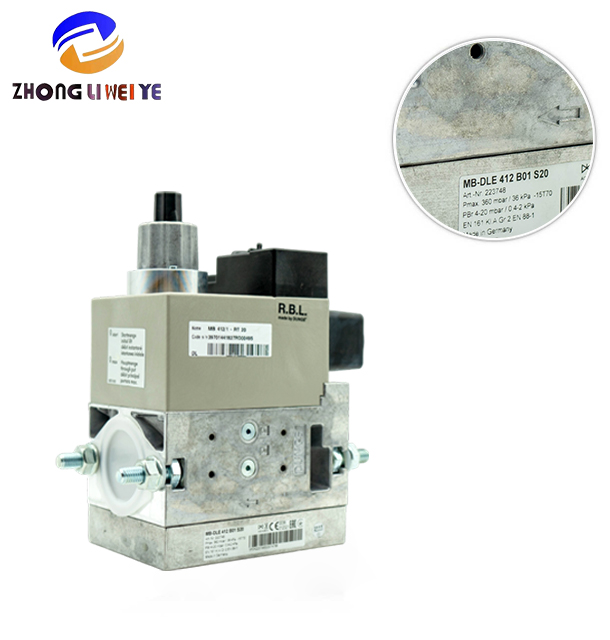

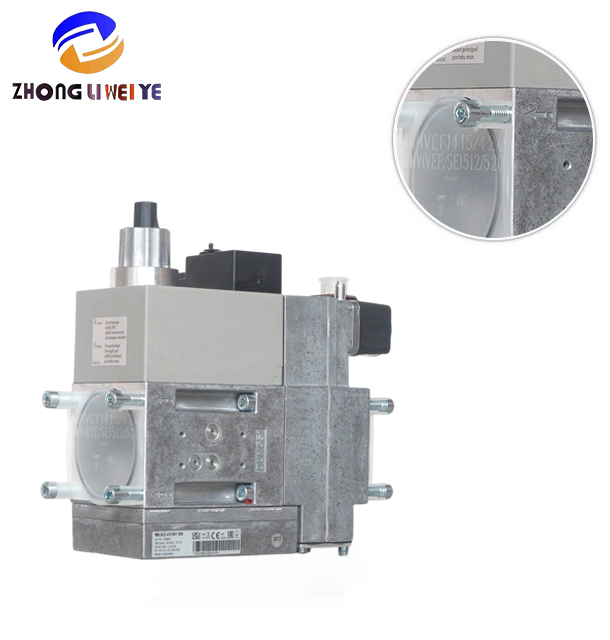

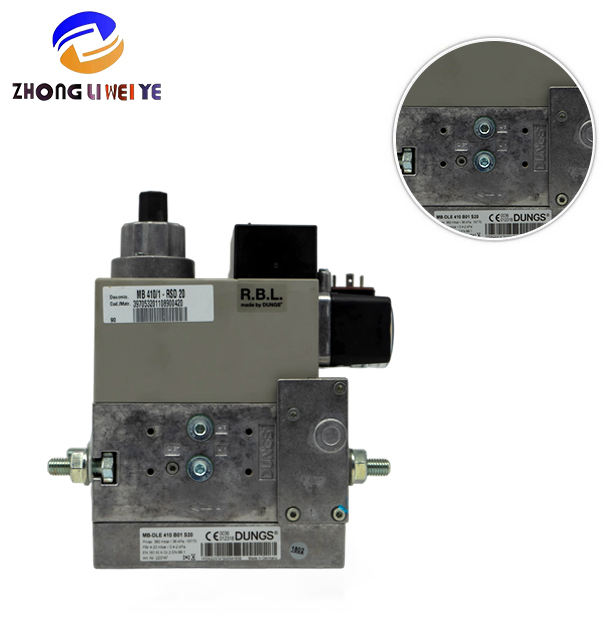

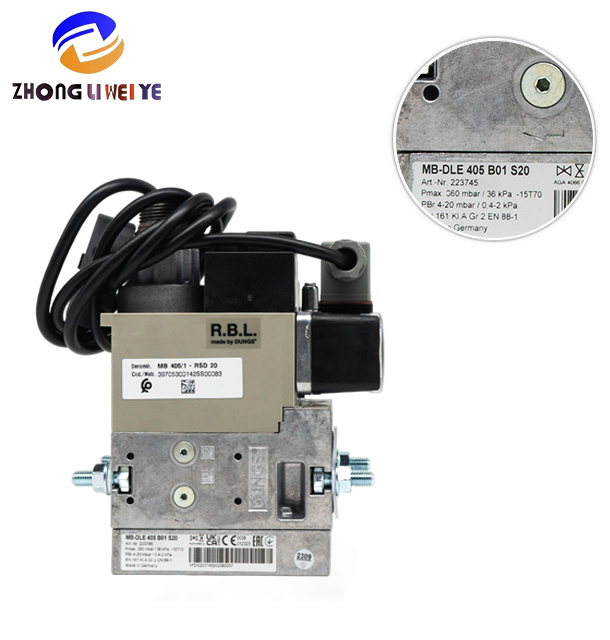

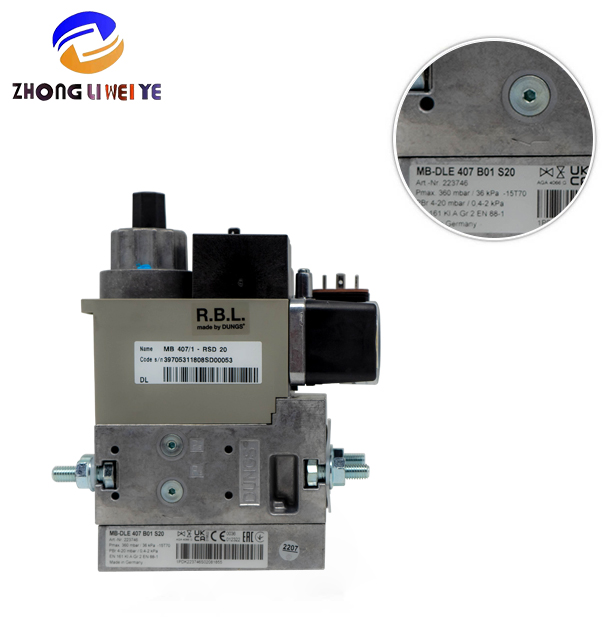

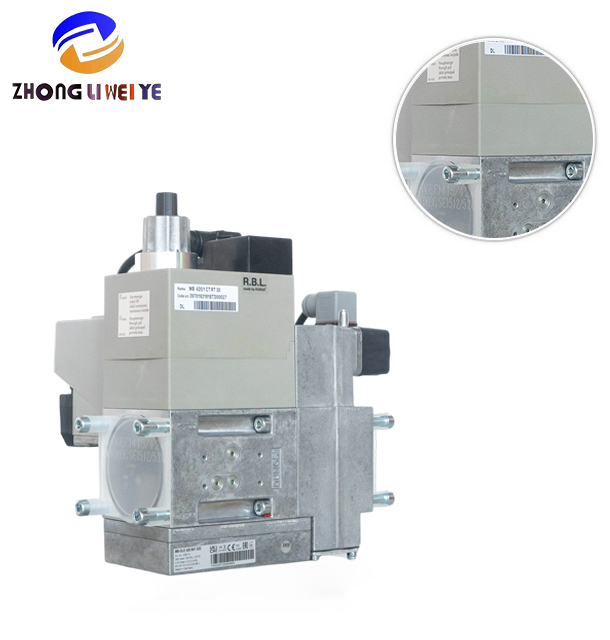

High Integration High-Performance Solenoid Valve for Gas Flow

Product Description

Engineered for demanding industrial environments, the High Integration High-Performance Solenoid Valve provides exceptional reliability in managing gas and fluid flow. By precisely energizing or de-energizing its advanced electromagnet core, the valve rapidly opens or closes, enabling accurate control over fluid direction, system pressure, and flow rates. Designed to minimize downtime and enhance operational safety, this versatile device is a critical component for modern automation, energy management, HVAC systems, and water treatment facilities. Its compact structural design ensures seamless integration into space-constrained setups, while its robust construction guarantees long-term stability in safety-critical processes.

Features

• Dual-Mode Operation: Supports both normally open (NO) and normally closed (NC) configurations, providing the flexibility to adapt to diverse system requirements and safety protocols.
• High-Quality Materials: Constructed with corrosion-resistant stainless steel or industrial-grade brass bodies. This robust build ensures extended longevity and reliable performance even in harsh, corrosive environments.
• Rapid Response Time: Achieves instantaneous actuation in <10ms, ensuring precise timing and synchronization in high-speed automated workflows and critical gas flow control.
• Wide Pressure Range: Capable of safely handling operating pressures from 0.1 to 200 bar. This wide range makes it highly suitable for various applications, from low-pressure agricultural irrigation systems to demanding high-pressure industrial pipelines.
• Energy Efficiency: Features low-power consumption coils designed to significantly reduce long-term operational costs. Optional PWM (Pulse Width Modulation) modulation is available for further energy savings and thermal management.
• Multi-Port Design: Available in versatile 2/2, 3/2, or 5/2 port configurations, easily accommodating complex fluid routing and advanced pneumatic control needs.

Application

• Industrial Automation: Accurately controls pneumatic actuators in fast-paced assembly lines, packaging machinery, and robotic systems, improving overall manufacturing efficiency.
• HVAC Systems: Reliably regulates chilled water, coolant, or steam flow in commercial heating, ventilation, and air conditioning systems for optimal temperature control.
• Water Treatment: Manages precise chemical dosing, advanced filtration sequences, and reverse osmosis processes to maintain stringent water quality standards.
• Energy Sector: Safely controls fuel supply lines in power generation plants and efficiently manages complex gas distribution networks in refineries.
• Medical Devices: Integrated into critical healthcare equipment, such as anesthesia machines and dialysis equipment, where precise and dependable fluid delivery is non-negotiable.

FAQ

Q: How do I select the right solenoid valve for my application?
A: When selecting a valve, carefully consider factors such as fluid type, operating pressure, temperature range, required flow rate, and electrical specifications. It is crucial to ensure full compatibility with your system’s control signals, including specific DC/AC voltage requirements, to guarantee optimal performance.

Q: Can these solenoid valves be used with aggressive chemicals?
A: Yes, they are suitable for aggressive media provided the correct configurations are selected. We highly recommend choosing valves equipped with chemically compatible seals (e.g., EPDM for acidic solutions, Viton for oils and hydrocarbons) and utilizing corrosion-resistant housing materials like 316 stainless steel for maximum durability.

Q: What are the common causes of solenoid valve failure and how can they be prevented?
A: Common operational issues include coil burnout caused by unexpected voltage spikes, debris jamming the internal plunger, or gradual seal degradation. Implementing regular maintenance schedules and installing proper upstream filtration can effectively prevent these problems and extend the valve's service life.

Q: Is regular maintenance required for solenoid valves?
A: Yes, periodic inspection is recommended to ensure continuous reliability. This includes checking the integrity of seals, coils, and electrical connections. Cleaning the internal valve body and ensuring proper lubrication (if applicable to the specific model) will help maintain peak performance.

Q: Can these solenoid valves operate safely in explosive or hazardous environments?
A: Absolutely. We offer explosion-proof models that are fully ATEX-certified, specifically designed for hazardous areas. These specialized valves ensure safe, reliable operation in flammable atmospheres and environments with strict safety compliance requirements.
