When a burner goes down, the clock starts ticking. For facility managers and technicians, a silent boiler or furnace represents more than just a drop in temperature; it means halted production lines, freezing pipes, and rapidly escalating operational costs. The pressure to restore heat often leads to hasty diagnoses, where the most complex component gets the blame first. We often see technicians immediately suspect the black box on the wall—the controller.
However, this diagnostic approach relies on a fallacy. Industry data suggests that nearly 80% of perceived controller failures are actually external peripherals functioning exactly as designed. Sensors, valves, and wiring detect unsafe conditions and trigger a shutdown to protect the facility. The controller is usually just the messenger, not the culprit. Troubleshooting effectively requires you to stop blaming the messenger and start decoding the message.
This guide moves beyond basic part-swapping. We will break down the diagnostic logic required to isolate hard vs. soft lockouts, rectify flame signals, and manage complex PID loop integrations. You will learn to distinguish between a failed Burner Program Controller and a peripheral safety trip, ensuring your maintenance budget goes toward solving the root cause rather than replacing functional hardware.
Key Takeaways
Distinguish Lockouts: Understand the difference between a Soft Lockout (self-correcting) and a Hard Lockout (manual reset required) to narrow down root causes.
Verify Peripherals First: Before blaming the burner program controller, rule out flame scanners, airflow switches, and burner fittings integrity.
Environmental Context: Seasonal changes and building negative pressure often mimic controller faults.
Integration Logic: For PLC-driven systems, integral windup is a common cause of poor temperature control post-ignition.
Safety Compliance: Never bypass safety interlocks for permanent operation; troubleshooting is for diagnosis, not circumvention.
Initial Diagnostics: Isolating the Failure State
Effective troubleshooting begins with rapid triage. You must determine if the failure stems from an electrical break, a mechanical jam, or a logic error within the sequence. Before opening your toolbox to dismantle the burner assembly, take a moment to observe the system's state. This initial observation often saves hours of wasted labor.
The Call for Heat Verification
A burner that sits in standby mode indefinitely is often waiting for permission to start rather than experiencing a failure. The first step is confirming the operating control—whether a simple thermostat or a complex PLC output—is actually closing the circuit at the T-T terminals. Use a multimeter to verify continuity across the control loop. If the circuit is open, the controller is doing its job by waiting.
You must also check the limit string. This series of safety switches protects the vessel and the facility. Common culprits include low water cutoffs on steam boilers or high/low gas pressure switches on the fuel train. If any switch in this series opens, the Burner Program Controller loses power to its limit terminal and will not initiate a sequence. Verifying voltage at the limit input terminal quickly isolates whether the problem is internal to the burner or external in the safety loop.
Decoding LED Status Indicators

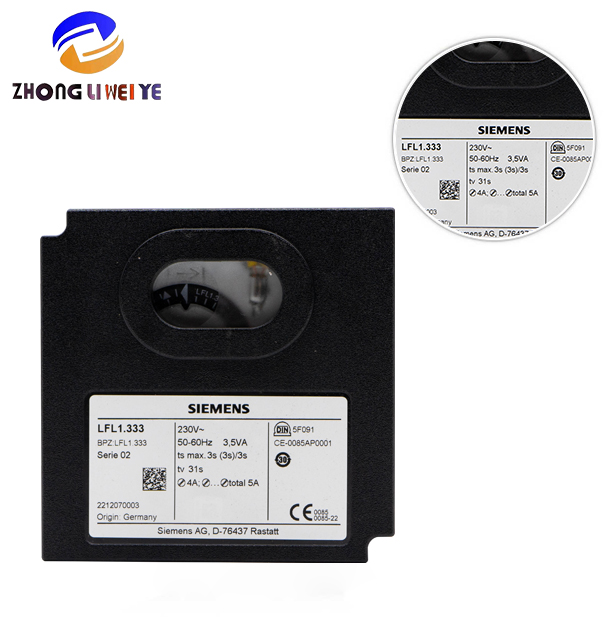

Modern controllers communicate through LEDs. While older electromechanical units required you to watch a rotating cam, digital units provide specific fault codes. You need to distinguish between steady lights and blinking patterns. A steady light often indicates a specific stage of operation, such as Standby or Trial for Ignition. In contrast, blinking sequences usually transmit specific fault codes.
Refer to the manufacturer’s literature for your specific model (common standards include Beckett GeniSys or Honeywell 7800 series). Be wary of the Ghost Fault. This describes an intermittent issue where the burner trips, but a simple reset clears the code, and the unit runs fine for hours. These are rarely controller failures. They typically point to loose wiring connections that vibrate open or marginal flame signals that dip below the threshold just long enough to trigger a safety shutdown.
Hard vs. Soft Lockouts
Understanding the difference between a soft lockout (recycle) and a hard lockout (restricted) effectively cuts your troubleshooting list in half. A soft lockout suggests a transient issue, whereas a hard lockout indicates a critical safety breach.
| Feature | Soft Lockout (Recycle) | Hard Lockout (Restricted) |
| Behavior | Controller waits, then attempts to restart automatically. | Controller shuts down permanently until human intervention. |
| Common Causes | Momentary flame loss, voltage dips, wind gusts. | False flame during purge, relay weld, ignition failure. |
| Reset Method | Self-resetting (typically). | Manual reset required (often hold button 15+ seconds). |
| Safety Implication | Low immediate risk; nuisance trip. | High risk; implies unburned fuel or critical component failure. |
Analyzing Interlock and Sequence Failures
If the controller receives power and a call for heat but halts during the startup sequence, you must identify exactly where it stops. The startup sequence is a rigid checklist. The controller will not move to step B until step A is proven safe. Using competitor insights on failure modes, we can pinpoint specific hurdles in this race.
Pre-Ignition Interlock Failures
Before the blower even starts, the controller checks the Proof of Closure (POC) switch. This auxiliary switch is mounted on the main gas valve body. It confirms the valve is mechanically closed to prevent raw gas from filling the chamber during standby. If this switch does not make contact, the sequence dies instantly. Dirt or grease in the valve linkage often prevents the POC switch from closing, even if the valve itself is sealed.
Another common pre-ignition fault is a False Flame Signal. This occurs when the controller detects a flame signal during the standby or pre-purge period. A leaking gas valve might maintain a small fire in the chamber. Alternatively, a UV scanner might be seeing the glowing refractory of a hot chamber and mistaking it for active combustion. The controller enters a lockout to prevent opening the fuel valves into a chamber that may already have an ignition source present.
Running Interlock & Airflow Issues
Once the blower starts, the sequence demands proof of airflow. The airflow switch is a simple pressure differential device, but it is prone to mechanical issues. Vibration from the motor can cause the switch contacts to bounce, breaking the circuit for a fraction of a second—just long enough to trip the controller.
Combustion air supply lines are equally critical. We frequently find that blocked intake dampers or clogged impulse lines prevent the switch from sensing pressure. Technicians should inspect the impulse tubing and the burner fittings that connect the air switch to the housing. A loose fitting here causes a pressure leak, making the switch think the fan has failed. Tightening these fittings often resolves airflow failure alarms without replacing any parts.
Pilot and Main Flame Establishment (Lockout 19 scenarios)
The transition from spark to pilot and then to main flame is the most delicate part of the sequence. Morning Sickness is a phenomenon where burners fail only on the first cold start of the day. Overnight, valve actuators stiffen due to cold grease, or the chimney draft becomes heavy with cold air. The valve opens too slowly, and the trial-for-ignition timer expires before the flame stabilizes.
Ignition transformer health plays a massive role here. A transformer might buzz loudly but produce a weak, yellow spark instead of a crisp, blue arc. You need an ignition tester to verify spark strength under load. Additionally, check valve actuator timing. If the pilot proves successful but the system locks out when the main valve is supposed to open (often triggered as a Lockout 19), it implies the main flame signal was not established fast enough. This is frequently a mechanical delay in the main fuel valve, not a logic error in the controller.
Signal Quality and Environmental Factors
Digital controllers are sensitive. They rely on precise inputs to make safety decisions. Poor signal quality or environmental variables can confuse the logic, leading to nuisance trips that frustrate operators.
Flame Signal Strength & Rectification
Most modern systems use flame rectification. The flame itself acts as a diode, converting the AC voltage from the flame rod into a DC signal for the amplifier. The controller requires a stable DC voltage—typically above 1.25V DC, though you should check specific manufacturer standards. A dropping signal leads to sluggish response or random lockouts.
Grounding integrity is the most overlooked factor in flame rectification. The current path travels from the flame rod, through the ionized gas (flame), to the burner head (ground), and back to the controller. If the burner chassis has a poor earth ground—caused by rust, paint, or loose conduit—the signal becomes unstable. The flame exists, but the controller cannot see it reliably. Regularly cleaning UV/IR scanner lenses and checking sight tubes for moisture condensation prevents signal degradation.
The Building Negative Pressure Factor
Seasonal weather changes often bring a wave of controller failures. When winter arrives, facility managers close doors and windows to conserve heat. Exhaust fans in the building continue to run, creating a negative pressure environment inside the mechanical room. This vacuum competes with the combustion air fan.
The burner struggles to pull in enough air, or the draft in the stack reverses. This triggers the air pressure switch or causes flame instability. Adjusting the air switch sensitivity is merely a band-aid. The real fix involves verifying makeup air supply. You must ensure the boiler room has dedicated ventilation that is not compromised by the building's envelope tightness.
Burner Fittings and Mechanical Tightness
Mechanical tightness directly impacts signal stability. Pilot tubes and sensing lines rely on secure connections to transmit fuel and pressure accurately. We often find loose burner fittings on pilot gas lines. These leaks cause a pressure drop at the pilot nozzle, resulting in a weak, wavering pilot flame that the scanner barely registers. Similarly, loose fittings on the air pressure sensing line create turbulence. This turbulence mimics a fan failure, causing the controller to abort the run. A simple wrench check on these fittings can eliminate phantom faults.
Advanced Control: PID Loops and PLC Integration
In industrial settings, the Burner Program Controller often acts as a slave to a master PLC or a standalone PID loop controller. This handoff introduces complexity. The PLC manages the process temperature, while the burner controller manages the safety sequence.
The Bumpless Transfer Problem
A frequent issue in integrated systems is the bump during startup. The burner lights off successfully but immediately drops to low fire or, conversely, overshoots the setpoint rapidly. This is often due to Integral Windup in the PID loop. While the burner is going through its purge and ignition sequence (which can take minutes), the PID controller sees that the temperature is below the setpoint. The integral term accumulates error, winding up the output to 100%.
When the burner finally lights and hands control to the PID loop, the output is maxed out, causing an overshoot. To prevent this, you must configure the logic to freeze the integral term during the pre-ignition phase or use PV Tracking, where the setpoint matches the process variable until the burner is released to modulate.
Tuning for Process Lag
Burners have inherent lag. When the valve opens, it takes time for combustion to increase, heat to transfer to the water, and the sensor to register the change. This is Dead Time. If your PID tuning is too aggressive, the burner will hunt—constantly ramping up and down. You must tune the parameters to account for this physical delay to ensure smooth modulation and prevent thermal shock to the vessel.
Communication Handshakes
The interface between a PLC and a burner controller relies on hardwired or digital handshakes. A common failure point is the synchronization between the PLC Run signal and the Controller Status feedback. If the PLC removes the Run signal but the controller takes a few seconds to post-purge, the PLC might register this as a Failed to Stop alarm. Verifying the timing delays in your ladder logic ensures that the PLC respects the burner's internal safety timings, preventing nuisance alarms.
Evaluation Framework: Repair vs. Replace Decisions
Troubleshooting eventually leads to a decision point. Do you repair the existing unit, or is it time to upgrade? This decision impacts safety and budget.
Obsolescence and Support Risks
Relying on eBay refurbished controllers for critical process heat is a gamble. As manufacturers phase out legacy models, sourcing specific amplifier cards or program modules becomes difficult and expensive. If your facility relies on a controller that hasn't been manufactured in a decade, a single component failure could mean weeks of downtime. Proactive replacement eliminates this supply chain risk.
Safety and Compliance Upgrades
Safety codes evolve. Standards like NFPA 86 update regularly to include stricter requirements for valve proving, post-purge cycles, and interlock testing. An older controller may function but might not meet current code requirements. Upgrading to a modern controller is often necessary to maintain insurance compliance and ensure personnel safety.
ROI of Modern Controllers
Modern controllers offer distinct advantages that calculate into a positive ROI.
Diagnostics: New units feature plain-text displays. Instead of counting cryptic blinks, the technician reads Main Flame Fail, significantly reducing troubleshooting time (TCO reduction).
Connectivity: Integration with Modbus or BACnet allows for remote monitoring. You can see a fault history log from your desk, identifying trends before they become hard lockouts.
Scalability: A modern controller supports future upgrades to the burner train, such as O2 trim systems or VFD control for the blower, which directly save fuel.
Conclusion
Troubleshooting a burner system requires a systematic elimination of variables. The process starts with verifying power and safety limits, moves to inspecting mechanical interlocks like air switches and burner fittings, and finally analyzes the logic of the controller itself. We must remember that the controller is rarely the enemy; it is a sentinel protecting your facility from unsafe conditions.
The safety imperative is non-negotiable. Persistent lockouts are safety mechanisms working exactly as intended. Overriding safeties or jumping out switches to force a burner to run risks catastrophic failure, explosion, or injury. Troubleshooting is for diagnosis, not circumvention.
If you encounter persistent unexplained faults, or if your equipment is aging into obsolescence, consider this a signal to upgrade. Consulting with a certified combustion engineer to replace legacy burner program controllers with modern, digital standards ensures reliability, compliance, and peace of mind for your operation.
FAQ
Q: What does a flashing red light mean on my burner controller?
A: A flashing light usually indicates a specific fault code or a Soft Lockout (recycle). Unlike a steady light which may indicate a Hard Lockout requiring a manual reset, a flashing code communicates the cause of the stop. You must refer to your specific model's manual to decode the number of flashes (e.g., one flash might mean No Flame, two might mean Airflow Fail). Do not guess; count the flashes or check the display module for a text description.
Q: Why does my burner lock out only in the morning?
A: This Morning Sickness is typically caused by cold environmental factors rather than a bad controller. Overnight, the chimney draft can become heavy with cold air, preventing proper venting during the start. Additionally, grease in gas valve actuators can stiffen in the cold, causing the valve to open too slowly. If the valve doesn't prove open before the controller's timer expires, the system trips.
Q: How do I reset a Hard Lockout?
A: A Hard Lockout (Restricted) indicates a serious safety failure. To reset it, you typically must press and hold the reset button for 15 to 30 seconds (consult your manual). However, simply resetting the unit without investigating why it locked out is dangerous. A hard lockout often means the system detected flame when none should exist or a critical relay failed. Always identify the root cause before resetting.
Q: Can a bad ground wire cause a burner failure?
A: Yes, absolutely. Modern flame detection systems use flame rectification, which relies on the flame acting as part of an electrical circuit. This circuit requires a solid path from the flame rod, through the fire, to the burner ground. If the ground wire is loose, corroded, or attached to a painted surface, the electrical signal (DC microamps) will be unstable, causing the controller to shut down even if a good fire exists.
Q: When should I replace my burner program controller instead of repairing it?
A: You should replace the controller if it is over 10 years old (approaching end of life), if spare parts like amplifier cards are obsolete/unavailable, or if you experience recurring ghost faults that cannot be traced to external wiring. Furthermore, if you need better integration with a Building Management System (BMS) for remote monitoring, upgrading to a digital controller provides significant long-term value over repairing an analog unit.
