The industrial burner provides the raw thermal power for your boiler or furnace, but the controller dictates the operational cost. While facility managers often focus on the burner's maximum output, the real efficiency battle happens in the modulation logic. Many industrial facilities lose 2–5% efficiency annually not because of the burner design, but due to mechanical hysteresis in legacy control systems. This slop in the linkages prevents precise repeatability, forcing operators to run with higher excess air just to remain safe.
The industry is currently undergoing a significant shift from mechanical cam-and-linkage systems to digital, servo-based technologies. This is not merely a modernization trend; it is a fundamental change in how combustion is managed. By upgrading the brain of the combustion system, plants can lock in fuel savings, improve thermal consistency, and meet increasingly stringent safety codes.
This article evaluates how upgrading to a modern Burner Program Controller impacts your bottom line. We will move beyond basic operations to explore parallel positioning, PID loop tuning, and the critical hardware necessary for digital precision.
Key Takeaways
Eliminating Hysteresis: How replacing mechanical linkages with parallel positioning (servo motors) eliminates slop and ensures repeatable fuel-to-air ratios.
Advanced Logic: The role of PID loops and Oxygen Trim in dynamic, real-time combustion tuning.
ROI Realities: Understanding that a 2% efficiency gain often pays for a controller upgrade in under 12 months (based on DOE benchmarks).
System Integrity: Why high-quality burner fittings and valve trains are non-negotiable for controller accuracy.
The Hidden Cost of Mechanical Control vs. Digital Precision
Legacy systems rely on a single drive motor connected to fuel valves and air dampers via a jackshaft and mechanical linkages. While robust, this design suffers from a critical flaw known as mechanical hysteresis. Over time, the wear and tear on joints, swivels, and connecting rods create physical play.
The Legacy Flaw: Mechanical Hysteresis
Hysteresis creates a disconnect between the controller’s command and the physical position of the valve. When the system modulates up to a high-fire rate and then returns to a low-fire position, the air damper rarely lands in the exact same spot. It might be off by a few degrees due to the slack in the rods.
To compensate for this unpredictability, combustion engineers must tune the burner with a wide safety margin. They add excess air to ensure that, even if the linkage slips, the mix never becomes fuel-rich (which causes dangerous carbon monoxide formation). This safety margin wastes fuel. You are essentially heating extra air and sending it straight up the stack.
The Solution: Parallel Positioning
Modern efficiency begins with parallel positioning, often called linkageless control. This technology removes the jackshaft entirely. Instead, independent servo motors are mounted directly onto the fuel valves and air dampers.
A digital controller sends electronic signals to these servos, achieving positioning accuracy often within 0.1 degrees. Because there are no rods to bend or joints to wear, the system repeats the exact fuel-to-air ratio every time. This precision allows operators to tune the burner much closer to the stoichiometric ideal—the perfect chemical balance of fuel and oxygen—without compromising safety.
Turndown Ratio Impact
Mechanical systems typically offer a turndown ratio (the ratio of maximum to minimum firing rate) between 2:1 and 4:1. Digital control capabilities dramatically expand this range, often achieving 10:1 or higher.
A high turndown ratio is vital for handling variable loads. If a boiler cannot turn down low enough during low-demand periods, it must shut off completely. When demand returns, it must purge the chamber with cold air before re-igniting. This short cycling dumps heat out of the stack and stresses the vessel. A digital controller keeps the burner firing at a low, steady rate, avoiding these wasteful purge cycles.

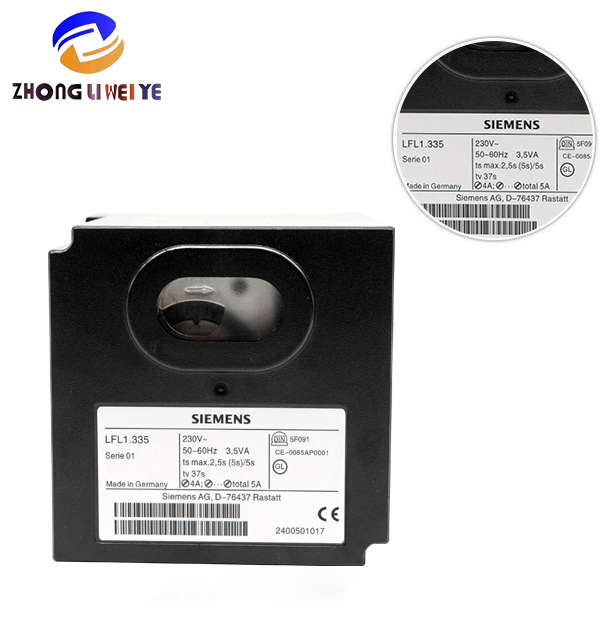

Core Technologies Inside a Modern Burner Program Controller
The hardware changes are visible, but the software logic is where the efficiency is truly captured. A modern Burner Program Controller uses sophisticated algorithms to predict and react to thermal changes.
PID Control Logic: The Brain
Proportional-Integral-Derivative (PID) control is the industry standard for maintaining stable process variables. In combustion, it ensures the temperature or pressure stays flat regardless of load changes.
P (Proportional): This handles the immediate reaction. If the steam pressure drops, the P-term commands the burner to fire harder. However, relying only on P can cause the system to oscillate.
I (Integral): This addresses accumulation or steady-state error. It looks at the history of the error over time and nudges the output to eliminate the gap between the setpoint and actual temperature.
D (Derivative): This is the prediction engine. It monitors the rate of change. If the temperature is rising fast, the D-term recognizes it will likely overshoot the target. It backs off the fuel supply before the limit is breached, preventing overheating and product damage.
Oxygen Trim (O2 Trim)
Even a perfectly tuned burner faces environmental variables. Changes in barometric pressure, humidity, or ambient air temperature alter the density of the oxygen entering the intake. A standard controller cannot see these changes.
O2 Trim systems integrate an exhaust sensor that feeds real-time oxygen data back to the controller. If the oxygen level in the stack deviates from the target, the controller micro-adjusts the air damper or variable speed drive (VSD). The goal is to maintain the Golden Ratio of approximately 2–3% excess oxygen (roughly 10–15% excess air). This minimizes the heated mass leaving the stack while ensuring complete combustion.
Pulse Firing vs. Modulating
While modulating control is standard for boilers, pulse firing is emerging as a powerful alternative for industrial furnaces. Pulse firing uses rapid on/off duty cycles rather than throttling a valve.
By firing at high velocity for short bursts, pulse firing creates turbulence inside the furnace. This turbulence improves convective heat transfer, ensuring uniform temperature distribution in the product. It is particularly effective for heat-treating applications where cold spots cause quality defects.
Hardware Synergy: Why Valves and Burner Fittings Matter
There is a fundamental rule in automation: a sophisticated controller cannot compensate for poor plumbing. Garbage in, garbage out applies strictly to combustion physics. If the sensors receive erratic pressure data due to leaks, the PID loop will become unstable.
Selecting the Right Burner Fittings
The physical connection between the fuel train and the burner determines the quality of the data the controller receives. You must select high-quality Burner Fittings that are rated for the specific pressure and temperature of your application.
In industrial environments, vibration is a constant threat. Compressors and heavy machinery create resonance that can loosen standard pipe threads over time. Specialized fittings designed for combustion systems feature vibration-resistant sealing technologies. This ensures that the gas pressure reading at the sensor matches the reality at the burner tip. A leak at a fitting not only poses a safety risk but creates a pressure drop that tricks the controller into supplying too much or too little fuel.
Mass Flow Control (MFC)
Traditional systems measure volumetric flow. However, gas volume changes with temperature and pressure. A hot summer day expands the gas, meaning a cubic foot contains fewer fuel molecules than on a cold winter day.
Pairing a digital controller with thermal mass flow meters solves this. Mass flow meters count the actual molecules (mass) passing through the line rather than the volume. This ensures consistent BTU delivery regardless of ambient plant temperature swings, allowing the controller to maintain precise energy input.
Evaluating ROI and Total Cost of Ownership (TCO)
Upgrading a burner control system is a capital expense, but the Return on Investment (ROI) is often faster than facility managers expect. The Department of Energy (DOE) benchmarks suggest that moving from a high-excess-air linkage system to a linkageless system with O2 trim typically yields a 2–5% efficiency gain.
The Calculation Framework
To estimate your potential savings, adapt the standard DOE logic:
Cost Savings = Fuel Consumption × Fuel Price × (1 – EfficiencyCurrent / EfficiencyNew)
| Metric | Legacy Mechanical System | Digital Linkageless System |
| Excess Air Required | High (15-25%) to cover hysteresis safety margins. | Low (10-15%) due to precise repeatability. |
| Position Accuracy | Variable (wear dependent). | Exact (0.1 degree precision). |
| Maintenance | Frequent lubrication and linkage calibration. | Minimal (no moving linkages). |
| Estimated Efficiency Loss | 2-5% annually. | Negligible (<1%). |
Maintenance and TCO
Beyond fuel, digital servos reduce direct maintenance costs. They have fewer moving parts than mechanical linkages—no rods to bend, no swivels to grease, and no springs to replace.
Furthermore, modern controllers provide deep diagnostic data. Instead of waking up to a generic Burner Failure alarm, operators can access a history of fault codes. They might see that the flame signal strength has been degrading slowly over two weeks, indicating a dirty scanner lens. This allows for predictive maintenance during a planned shift change rather than an expensive emergency shutdown at 2:00 AM.
Compliance and Safety
Safety compliance drives many upgrades. Integrated flame safeguards use UV or IR scanners to verify combustion instantly. Proof-of-closure switches ensure valves are fully sealed before a sequence begins. These features not only meet NFPA and local codes but can often reduce facility insurance premiums by demonstrating a lower risk profile.
Selection Criteria: How to Shortlist the Right Controller
Not every facility needs the most expensive, feature-rich controller. The selection should match the complexity of the thermal application.
Complexity vs. Necessity
For standard commercial boilers used for building heat, a single-loop controller is usually sufficient. These systems manage one primary variable (water temperature) and one control element (the burner).
However, industrial process heating often requires multi-loop or cascade control. For example, if you are heating a jacketed reactor, there is a significant lag between the heat source and the product temperature. A cascade controller uses two loops: an outer loop monitoring the product temperature and an inner loop controlling the heat source. This advanced logic prevents the hunting that occurs when a single loop tries to manage a slow-reacting process.
Interoperability (BAS/BMS Integration)
Data silos prevent optimization. Your new controller must speak the language of your plant. Verify if the unit supports standard protocols like Modbus, BACnet, or Ethernet/IP. Centralizing this data allows the Building Automation System (BAS) to track energy trends and spot anomalies across the entire facility.
HMI and Usability
The Human-Machine Interface (HMI) determines how easily your team adopts the new technology. Can operators easily read the lockout history, or is it hidden behind cryptic codes? Touchscreens with clear English (or local language) descriptions reduce troubleshooting time and training requirements.
Vendor Support and Parts Availability
Finally, assess the risk of proprietary systems. Open-standard components are generally preferred because parts can be sourced from multiple vendors. If a proprietary board fails and the manufacturer has discontinued it, you may be forced to replace the entire control panel.
Conclusion
The burner program controller is the single most effective retrofit for improving combustion efficiency without replacing the entire boiler or furnace. It transforms a dumb heating device into an intelligent, data-driven asset.
If you suspect your current system is wasting capital, conduct a simple audit of your Excess Air levels. If your team consistently runs above 15% excess air to maintain stability, the mechanical linkages are likely the culprit. A controller upgrade is not just a purchase; it is a correction of that fundamental inefficiency.
We recommend consulting with a combustion engineer to map your current combustion envelope before selecting a specific model. This ensures the new digital brain matches the physical capabilities of your burner.
FAQ
Q: What is the difference between linkage and linkageless burner controls?
A: Linkage controls use a single motor connected to fuel and air valves via mechanical rods and jacks. Over time, these connections wear out, creating slop or hysteresis that reduces accuracy. Linkageless controls (parallel positioning) use independent electronic servo motors mounted directly on each valve. This eliminates physical connections, removing hysteresis and allowing for precise, repeatable control of the fuel-to-air ratio typically within 0.1 degrees.
Q: How much fuel can I save by installing a new burner program controller?
A: Most facilities see fuel savings in the range of 2–5% when upgrading from a mechanical linkage system to a digital linkageless system with O2 trim. The exact amount depends on the condition of your current equipment. If your existing system has significant hysteresis and requires high excess air to operate safely, your savings will be at the higher end of this spectrum due to the tighter control of the stoichiometric ratio.
Q: Does a PID controller prevent temperature overshoot?
A: Yes, specifically through the Derivative (D) function of the PID loop. While the Proportional and Integral terms handle the current and past errors, the Derivative term predicts the rate of change. If the temperature approaches the setpoint too rapidly, the controller calculates that it will likely overshoot and proactively reduces the fuel supply before the target temperature is reached, ensuring a smooth arrival at the setpoint.
Q: Why are specialized burner fittings necessary for new control systems?
A: Modern digital controllers rely on highly sensitive sensors to make real-time adjustments. If standard plumbing fittings leak or loosen due to vibration, the pressure readings sent to the controller will be inaccurate (garbage in). Specialized Burner Fittings are designed to be leak-proof and vibration-resistant, ensuring that the data the controller receives is accurate. This allows the system to maintain the precise efficiency calculations it was designed to perform.
Q: What is the ideal excess air ratio for natural gas burners?
A: For a well-tuned natural gas burner using a digital controller, the target is typically 10–15% excess air. This roughly correlates to an oxygen (O2) reading of 2–3% in the exhaust stack. This Golden Ratio ensures that enough air is present to completely burn the fuel (preventing carbon monoxide) but limits the amount of extra air that absorbs heat and carries it out the stack, maximizing thermal efficiency.
