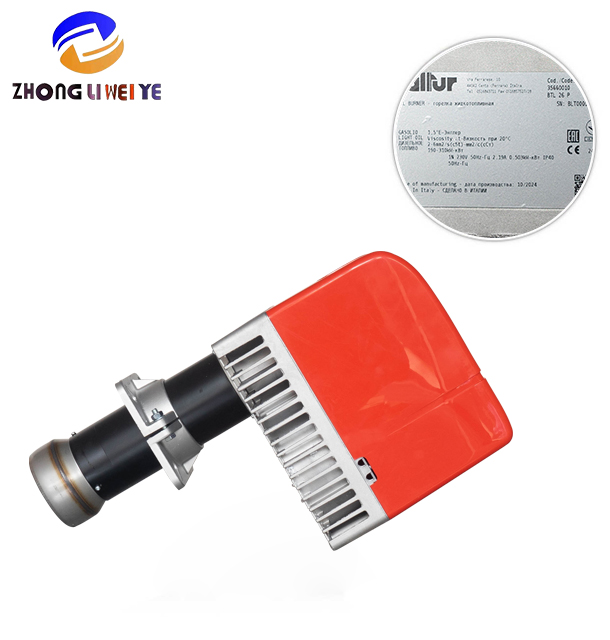

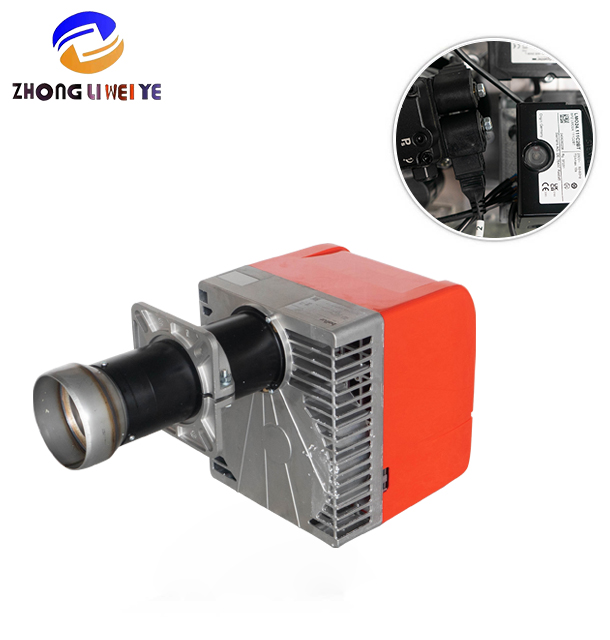

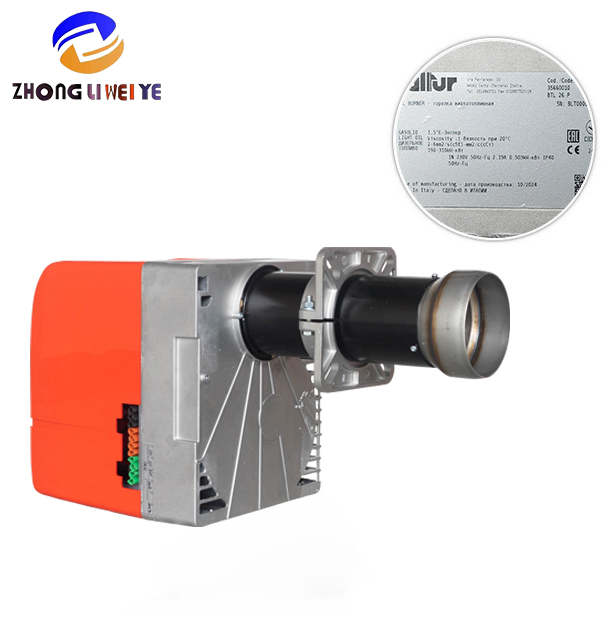

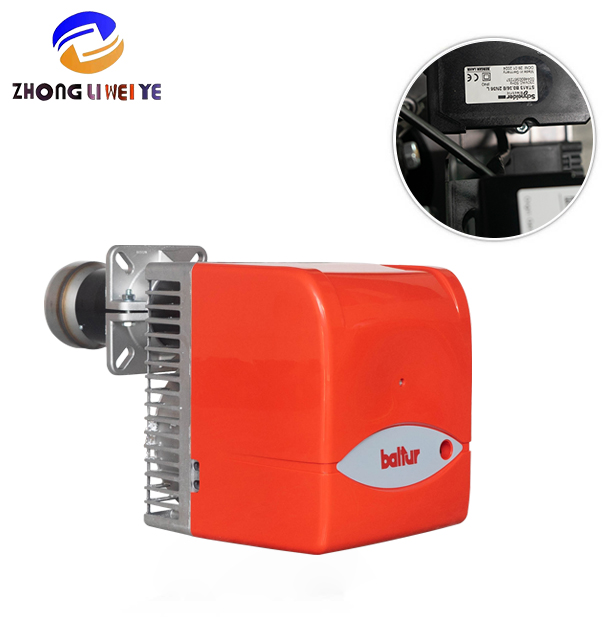

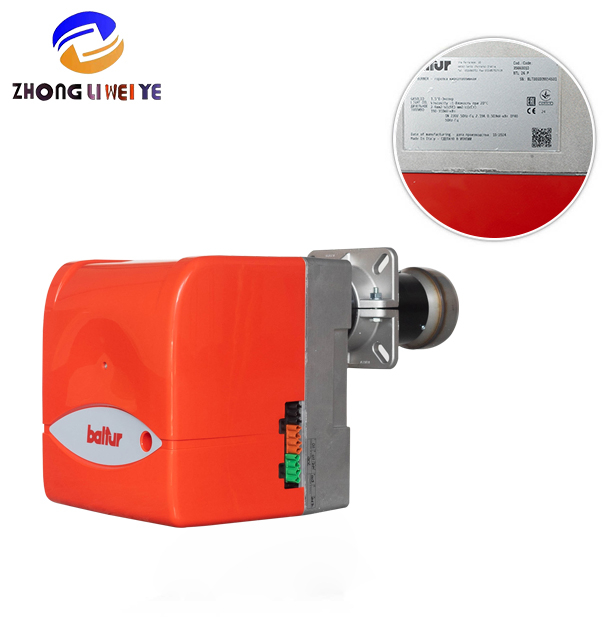

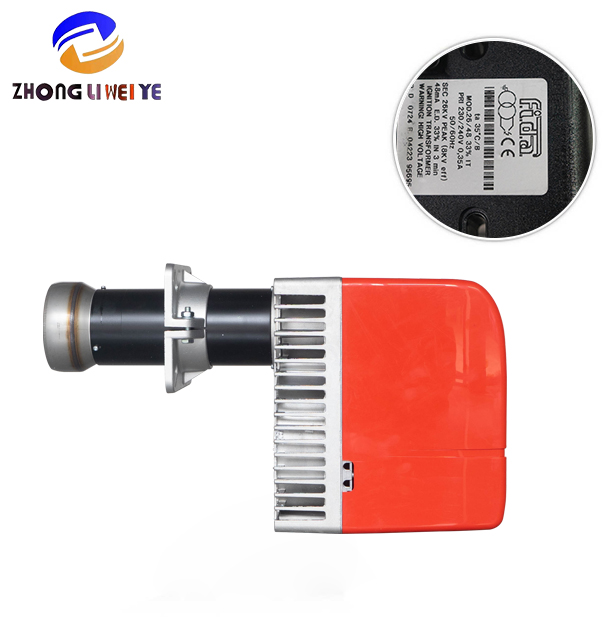

The Low Emission High Performance Oil Burner is engineered specifically for modern boiler systems, delivering an optimal balance of high thermal efficiency and strict environmental compliance. Designed for industrial and commercial heating applications, it features an advanced low NOx combustion system that utilizes premixed flame technology alongside a secondary air injection mechanism. This structural design effectively reduces nitrogen oxide emissions by up to 80% compared to traditional burners, helping facilities meet stringent regulatory requirements.
Beyond its environmental benefits, the burner boasts a highly compact structural design, ensuring straightforward installation in both horizontal and vertical boiler configurations. A notable 10:1 turndown ratio guarantees stable and efficient operation across a wide spectrum of fluctuating heating loads, minimizing energy waste during off-peak cycles. Built for durability in demanding environments, the system incorporates corrosion-resistant aluminum alloy components and a premium ceramic fiber-insulated combustion chamber. These materials work together to significantly minimize heat loss, optimize fuel consumption, and enhance the overall operational longevity of your heating infrastructure.
Engineered to meet and exceed the most stringent global environmental standards, including EPA Tier 4 and EU EN 676, this burner utilizes advanced flue gas recirculation (FGR) technology. By strategically controlling the combustion temperature and oxygen concentration, it effectively suppresses NOx formation, ensuring your facility remains compliant with evolving clean air policies.
Equipped with a remarkable 10:1 turndown ratio, the burner dynamically adjusts its output to match real-time system requirements. It maintains highly efficient operation from 10% all the way up to 100% of its rated capacity. This smooth adaptation to varying heating demands prevents short-cycling, reduces fuel consumption, and extends the lifespan of critical boiler components.
Industrial performance does not have to mean disruptive noise. The unit features a specialized noise-dampening enclosure and heavy-duty vibration-absorbing mounts, successfully reducing operational noise levels to below 75 dB. This acoustic optimization makes it highly suitable for installations near residential areas, hospitals, or any noise-sensitive commercial environments.
To minimize downtime and simplify maintenance, the burner is equipped with integrated smart sensors and a digital control module. Operators benefit from real-time performance monitoring, automated fault detection, and remote diagnostic capabilities accessible via a dedicated mobile app or PC interface, ensuring rapid troubleshooting and reliable continuous operation.
Positioned as a highly competitive and efficient alternative to models like the BALTUR BTL10, our Low Emission Oil Burner is ideally suited for demanding commercial and industrial boiler systems. It is extensively deployed across critical sectors, including district heating networks, power generation plants, and various process industries.
The burner demonstrates strong compatibility with a wide range of thermal equipment, such as steam boilers, hot water boilers, and thermal fluid heaters. By delivering reliable, uninterrupted heat output while strictly adhering to emission regulations, it provides substantial value for facilities actively aiming to reduce their carbon footprint. Furthermore, its versatile design and adaptability to different boiler sizes and configurations ensure it can be easily integrated into new OEM installations or utilized as a direct, high-efficiency upgrade for older, less efficient burner models.
Q: What is the exact NOx emission level when operating at full load?
A: At 100% operational load, the burner achieves ultra-low NOx emissions of ≤30 mg/m³ (corrected to 3% O₂). This performance exceeds most international clean air standards, significantly reducing environmental compliance risks for your facility.
Q: Is this burner compatible with modern condensing boiler systems?
A: Yes, the burner's specific low-temperature combustion profile is fully compatible with advanced condensing boiler technologies. This synergy helps maximize energy recovery from exhaust flue gases, further boosting overall system efficiency.
Q: What is the recommended maintenance schedule for the FGR system?
A: To ensure continuous optimal emission control and operational safety, we recommend routine maintenance every 6 months. This standard procedure includes basic filter cleaning, sensor calibration, and a general inspection of the flue gas recirculation components.
Q: What is the minimum load at which the burner can operate efficiently without wasting fuel?
A: Thanks to its advanced 10:1 turndown ratio design, the burner maintains an impressive 90% thermal efficiency even when operating at just 10% of its rated capacity. This ensures economical operation during low-demand periods.
