Industrial combustion systems represent a paradox in many manufacturing plants. They are simultaneously major cost centers, consuming vast amounts of fuel, and critical safety risks that demand constant vigilance. For decades, operators relied on mechanical linkages and cam-based systems to manage these forces. While functional, those legacy systems lacked the precision required for today’s stringent efficiency goals and safety standards.

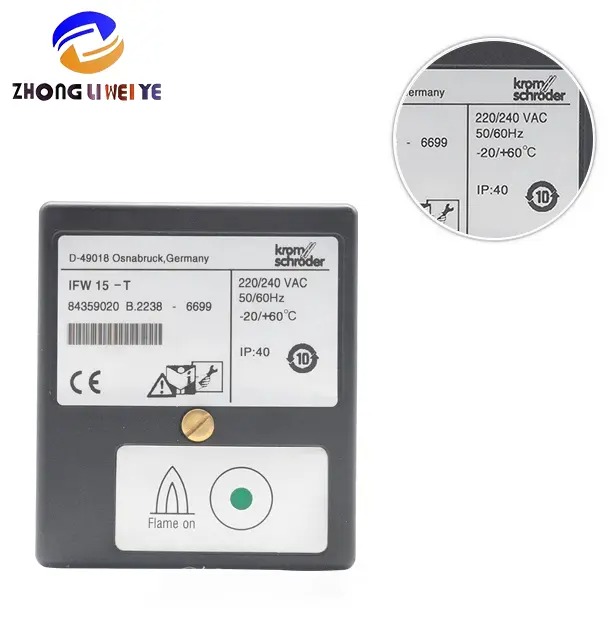

The industry has shifted rapidly toward the modern digital Burner Program Controller. Yet, a black box problem persists. Many facility managers and boiler operators still view these sophisticated devices as simple on/off switches, overlooking the complex logic processing happening inside. This article moves beyond basic ignition sequencing. We will evaluate the advanced features that drive real return on investment (ROI), ensure regulatory compliance, and deliver thermal precision in high-stakes industrial environments.
Key Takeaways
Precision Over Power: Electronic modulating systems (linkageless) eliminate mechanical hysteresis, offering fuel savings of 3–5% over traditional linkage systems.
Safety as a Standard: Modern controllers integrate pre-compiled safety blocks and SIL-rated logic, automating compliance with NFPA 85/86 and IEC 61508.
Data-Driven Maintenance: Advanced First-Out annunciation and remote diagnostics reduce troubleshooting time from hours to minutes.
The Role of PID: Cascading PID loops allow controllers to predict thermal lag rather than just reacting to it.
Electronic Modulation and Linkageless Technology
The single biggest inefficiency in legacy combustion systems is mechanical hysteresis. This phenomenon, often described as slop, occurs in the physical connections—rods, ball joints, and cams—that link a single drive motor to both the fuel valve and the air damper. Over time, wear and tear create play in these connections. A burner returning to a 50% firing rate might actually be at 48% air and 52% fuel, leading to inefficient combustion, soot formation, or dangerous fuel-rich conditions.
The Move to Independent Servomotors
Advanced burner program controllers solve this by abandoning the single-point drive concept. Instead, they utilize linkageless technology (also known as parallel positioning). In this architecture, independent servomotors control the fuel valve and the air damper separately.
These servo motors provide high-torque, precision positioning with feedback loops that verify the damper's exact angle. By decoupling air and fuel, the controller can be programmed to maintain the perfect stoichiometric ratio at every point in the firing range, regardless of mechanical wear.
Micro-Modulation Capabilities
True efficiency is not just about hitting high fire correctly; it is about optimizing the entire curve. Modern controllers allow commissioning engineers to program specific curve points—often between 10 and 20 distinct data points—across the modulation range.
Low Fire Optimization: Ensures stable flame retention without excess air cooling the process.
Mid-Range Efficiency: Optimizes the firing rates where most boilers spend 80% of their operational life.
High Fire Performance: Maximizes output while keeping emissions within legal limits.
The ability to fine-tune oxygen (O2) levels at these granular intervals allows for tighter control. The table below illustrates the operational difference between these technologies.
| Feature | Mechanical Linkage (Legacy) | Electronic Linkageless (Modern) |
| Actuation Method | Single motor with jackshafts/cams | Independent servomotors for fuel/air |
| Hysteresis (Slop) | High (increases with wear) | Near Zero (repeatable precision) |
| Curve Points | Limited by cam shape | Programmable (10–20 points) |
| O2 Control | Compromised average | Optimized at every firing rate |
The ROI Factor
The financial argument for upgrading is straightforward. By eliminating hysteresis and enabling tighter air/fuel ratios, linkageless controllers typically deliver fuel savings between 3% and 5%. Furthermore, precise control significantly reduces Nitrogen Oxide (NOx) and Carbon Monoxide (CO) emissions, helping plants stay compliant with tightening environmental regulations.
Advanced Logic: PID Control and Cascading Loops
Basic controllers operate like a standard home thermostat: if the temperature drops below a set point, the burner turns on. If it rises, it turns off. This bang-bang control is inefficient for large industrial processes. Advanced units employ Proportional-Integral-Derivative (PID) logic, which calculates not just if heat is needed, but how much and how fast.
Cascading PID Loops (Dual Loop)
In complex thermal applications, a single control loop is often insufficient due to thermal lag. For example, a large furnace may take minutes to heat up after the burner increases power. If the controller waits until the product temperature drops to react, it is already too late. Advanced controllers use cascading PID loops to predict this behavior.
Outer Loop (Process Master): This loop monitors the actual process variable, such as the temperature of the product or steam pressure. It calculates the ideal target for the heat source.
Inner Loop (Combustion Slave): This loop controls the burner firing rate directly. It receives its instructions from the Outer Loop and adjusts the flame intensity immediately to match the requested thermal load.
The benefit is a drastic reduction in temperature overshoot and undershoot. The system anticipates the inertia of the furnace, modulating the flame down before the target temperature is hit, ensuring a smooth arrival at the setpoint.
Integration with Burner Fittings
Software logic is only as effective as the hardware it commands. To leverage cascading PID effectively, the physical system requires high-quality Burner Fittings. These include precision control valves, zero-governor regulators, and butterfly valves that can physically respond to rapid, micro-adjustments.
Technical Note: It is crucial to understand that a high-end controller cannot compensate for poor-quality actuators or leaking fittings. If a control valve has high friction (stiction), it will ignore small PID changes until pressure builds up, causing it to jump abruptly. This negates the smooth control logic the digital system provides.
Integrated Safety Architectures (BMS vs. CCS)
When discussing burner controls, professionals often distinguish between two critical functions: the Burner Management System (BMS) and the Combustion Control System (CCS). The BMS handles safety permissives (the allow to fire logic), while the CCS handles efficiency and throttling (the firing rate logic). Modern advanced controllers integrate both into a unified processor while maintaining the required internal separation for safety integrity.
Code Compliance Features
Compliance with safety standards such as NFPA 85 (Boilers), NFPA 86 (Ovens/Furnaces), and NFPA 87 (Fluid Heaters) is mandatory in many jurisdictions. Advanced controllers automate the complex sequences required by these codes.
Automated Purge Timers: Ensures the combustion chamber is cleared of combustibles before ignition, strictly enforcing air-change volume requirements.
Proof of Closure (POC): Verifies that fuel shutoff valves are physically closed before starting a sequence.
Pilot Trials: Precisely times the ignition trial for the pilot flame (usually 10 seconds or less) to prevent fuel accumulation.
For high-hazard environments, controllers are available with Safety Integrity Level (SIL) ratings (SIL 2 or SIL 3) according to IEC 61508. These units feature redundant processors and voting logic to ensure that a single component failure (like a stuck relay) drives the system to a safe shutdown state rather than an unsafe failure.
Software Function Blocks
In the past, safety logic was often custom-written spaghetti code by system integrators, leading to potential bugs and liability issues. The modern approach utilizes pre-certified function blocks. Manufacturers provide password-protected, immutable blocks for critical functions like Purge, Leak Test, and Flame Safeguard. This shift reduces engineering hours during commissioning and significantly lowers liability, as the safety logic is factory-validated.
Diagnostics, Telemetry, and First-Out Annunciation
Every operator dreads the call: The boiler stopped, and we don't know why. On legacy systems, finding the cause of a shutdown involves tracing wires and guessing which interlock tripped first. Advanced controllers eliminate this guesswork.
Solving the It Just Stopped Scenario
First-Out annunciation is a game-changer for maintenance teams. When a safety chain breaks, multiple switches (gas pressure, air flow, water level) might open almost simultaneously as the system shuts down. A First-Out system freezes the data at the exact millisecond of the fault, identifying the specific sensor that triggered the lockout. This feature alone can reduce troubleshooting time from hours to minutes.
On-Board Data Logging
Modern burner program controllers serve as black-box flight recorders for combustion equipment. They store history logs of lockouts, firing rates, and sensor inputs. This data is vital for predictive maintenance. For instance, if the history shows the UV flame scanner signal has been getting progressively weaker over the last three weeks, maintenance teams can clean the lens or replace the scanner during a scheduled shift, preventing an unplanned emergency shutdown.
IIoT and Remote Connectivity
Connectivity is now standard. Controllers offer integration via Modbus/TCP, BACnet, or Profibus to feed data directly to a plant’s SCADA system. This allows for remote monitoring of fuel usage and status.
However, security is paramount. The best practice for remote connectivity is to configure access as Read-Only. This allows off-site engineering teams to diagnose issues via the cloud without exposing the burner to cyber risks associated with remote control capabilities.
Decision Framework: Retrofit vs. Complete Replacement
Deciding whether to retrofit a new controller onto an existing burner or replace the entire combustion package is a complex calculation. Use the following framework to assess your current equipment.
Evaluating Technical Debt
Start with a simple audit checklist:
Are spare parts for your current controller obsolete or available only on the secondary market?
Is the system currently running in Supervised Manual mode because the automatic sequencing is broken?
Do you lack visibility into fuel usage data?
If you answered yes to any of these, technical debt is costing you money and reliability.
Implementation Considerations
Retrofitting a sophisticated controller onto an old burner requires compatibility checks. The new brain must communicate with the existing limbs. Ensure that your current burner fittings, flame scanners (UV vs. IR), and ignition transformers are compatible with the voltage and signal types of the new controller. Additionally, plan for downtime. A retrofit is not a plug-and-play operation; it requires re-tuning the burner curve, which will take production offline for at least one to two days.
Cost vs. Benefit Analysis
The Capital Expenditure (CapEx) for advanced hardware and engineering is high. However, the Operational Expenditure (OpEx) savings often justify the cost within 18 to 24 months. The savings come from three buckets: reduced fuel consumption (via linkageless control), reduced electricity (via Variable Frequency Drives on blowers), and reduced emergency maintenance call-outs (via First-Out diagnostics).
Conclusion
The industrial burner program controller has evolved far beyond a simple safety switch. It is now a comprehensive asset management tool that serves as the brain of your thermal process. By integrating electronic modulation, PID cascading loops, and advanced diagnostics, these systems offer a pathway to significant fuel savings and enhanced safety compliance.
For buyers and facility managers, the recommendation is clear: avoid proprietary black box systems that lock you into a single vendor for parts and service. Prioritize open protocol systems that allow integration with your existing plant SCADA. Before procuring new hardware, conduct a thorough audit of your existing burner curves and safety interlocks. This baseline data will ensure your new system is specified correctly to maximize ROI and operational reliability.
FAQ
Q: What is the difference between a BMS and a Burner Program Controller?
A: Technically, the Burner Management System (BMS) refers to the safety logic (interlocks, purge, shutdown), while the controller is the physical hardware executing that logic. In the past, these were separate. Today, the terms are often used interchangeably because modern Burner Program Controllers integrate the BMS safety functions and the Combustion Control System (CCS) efficiency logic into a single hardware unit.
Q: Can advanced controllers work with old burner fittings?
A: Yes, but with caveats. You can wire a digital controller to old actuators, but if the physical valves and linkages have significant wear (slop), the precision of the digital controller is wasted. Loose linkages or sticky valves will prevent the system from holding the tight tolerances the controller requests. It is often recommended to upgrade the servo motors and couplings during a controller retrofit.
Q: How much fuel can a linkageless controller save?
A: Savings typically range from 3% to 10%, depending on the condition of the previous system. If replacing a well-maintained mechanical linkage system, expect around 3-5%. If replacing a worn, sloppy mechanical system that required high excess air to run safely, savings can reach 10% or more due to the ability to run tighter O2 levels safely.
Q: Do I need a SIL 3 rated controller for a standard boiler?
A: Not necessarily. SIL (Safety Integrity Level) requirements should be determined by a Process Hazard Analysis (PHA). For many standard industrial boilers, complying with NFPA 85 or local codes is sufficient. Specifying SIL 3 when it is not required adds unnecessary complexity and cost. However, for high-risk chemical or petrochemical applications, SIL ratings are often mandatory.
