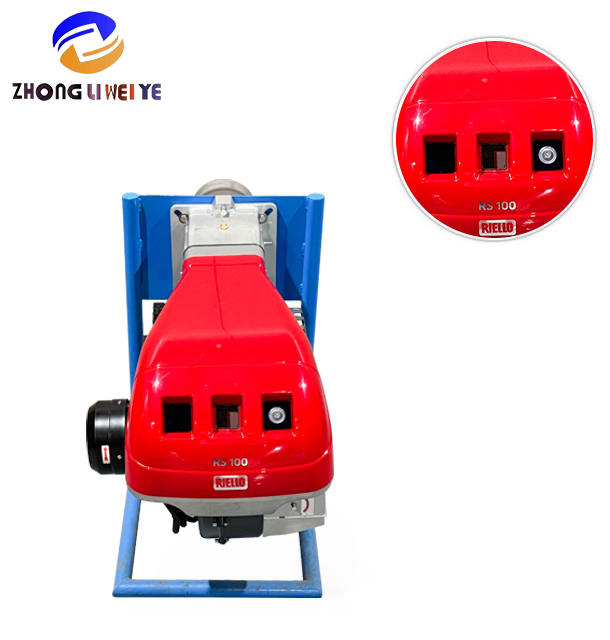

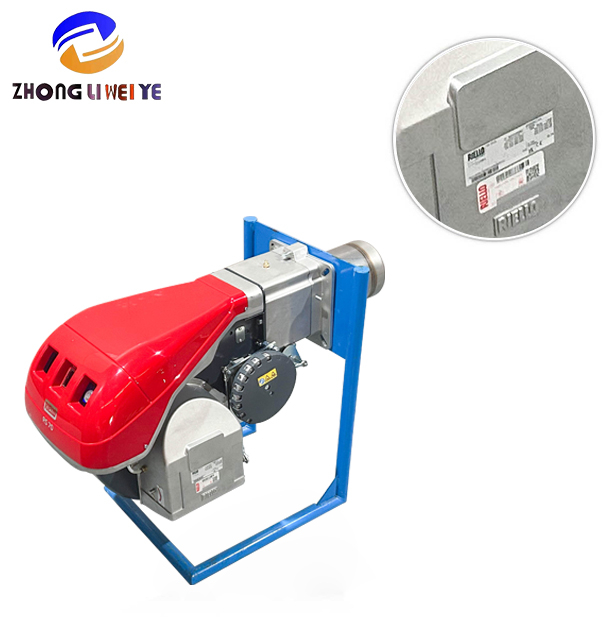

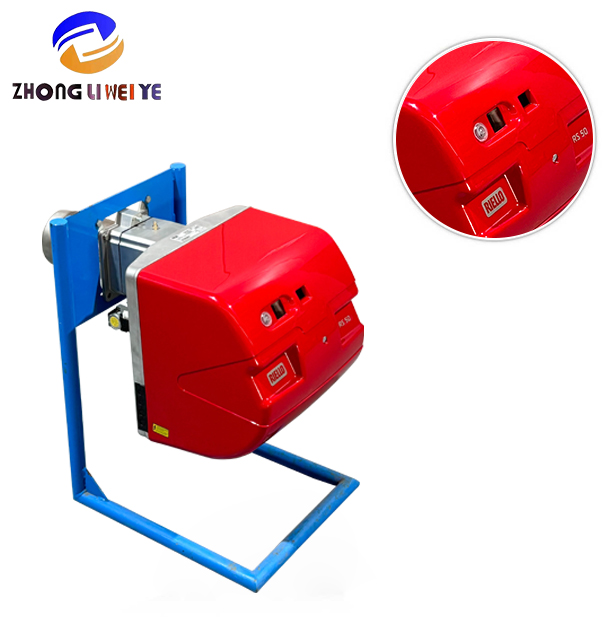

Two Stage Progressive Gas Burner for Hot Steam Boiler

Two Stage Progressive Gas Burner for Hot Steam Boiler

Name: Two Stage Progressive Gas Burner for Hot Steam Boiler
Rating: 5.0 (61 reviews)

This gas burners covers a firing range from 44 kW up to 2290 kW and features two-stage progressive operation. It is designed for use in low and medium temperature hot water boilers, hot air boilers, steam boilers, and diathermic oil boilers. The burner is equipped with a microprocessor-based safety control box that provides operational status indication and fault diagnostics, ensuring safe and reliable operation. The advanced fan and combustion head design guarantee excellent combustion performance and flexibility at all firing rates. Its compact design allows for easy installation and maintenance, while the air intake circuit combined with soundproofing material optimizes noise reduction. A wide range of accessories offers enhanced versatility for various applications.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Engineered to match the precise features and reliable performance of the renowned Riello RS34 Gas Burner, this Two Stage Progressive Gas Burner represents a premium solution for demanding industrial heating applications. Combining advanced combustion technology with an intelligent microprocessor control system, it is specifically designed to deliver high thermal efficiency, significant energy savings, and uncompromising operational safety.

With a broad overall firing range spanning from 44 kW up to 2290 kW across the series, this burner is highly adaptable for a variety of industrial heating setups. It is perfectly suited for low or medium-temperature hot water boilers, hot air generators, steam boilers, and diathermic oil boilers. The "two-stage progressive" operation ensures smooth transitions and precise temperature control, minimizing thermal shock to the boiler system.

The integration of a microprocessor-based safety control box provides real-time operational status indications and rapid fault diagnosis, significantly reducing downtime and simplifying maintenance for facility operators. Furthermore, the exclusive compact design minimizes the installation footprint while ensuring easy access to internal components. Thanks to the highly efficient fan and precision-engineered combustion head, users can expect exceptional flexibility and stable combustion across all firing rates. Sound emissions are meticulously optimized through a specialized air suction circuit design and built-in soundproofing materials, ensuring a quieter working environment.

Key Features & Technical Advantages

This monoblock forced draught gas burner features a fully automatic two-stage progressive operation, housed in a compact, user-friendly structure designed to maximize operational lifespan and simplify daily maintenance.

Optimized Air Intake System: Carefully equipped with premium soundproofing material to significantly reduce operational noise, ensuring a quieter industrial environment.
High-Performance Fan: Utilizes a straight blade design that substantially improves airflow efficiency and reduces electrical consumption.
Precise Airflow Regulation: Incorporates an advanced air damper and butterfly valve system to control air and fuel flow precisely on both the first and second stages. This is driven by a reliable servomotor featuring a variable cam for exact adjustments and optimal air-fuel ratios.
Robust Starting Motor: Operates efficiently at 2800 rpm. It is available in versatile power configurations, including single-phase 220-230V/50-60Hz or three-phase 380-400V/50-60Hz, catering to diverse facility requirements.
Durable Combustion Head: Expertly constructed with a corrosion-resistant and high-temperature-resistant stainless steel end cone. It comes fully fitted with ignition electrodes, an ionization probe, a precision gas distributor, and a flame stability disk to guarantee stable, reliable, and clean combustion.
Patented Housing Cooling System (HCS): A unique thermal management solution featuring high thermal insulation and continuous air circulation. It actively cools the burner housing, safeguarding sensitive electrical components from heat degradation and extending the equipment's service life.
Reliable Safety Devices: Integrates a highly sensitive minimum air pressure switch that immediately stops the burner operation if insufficient airflow is detected at the combustion head, preventing hazardous conditions.
Microprocessor Safety Control Box: Delivers comprehensive operational monitoring, real-time status updates, and precise fault diagnosis, empowering technicians to resolve issues swiftly.
External Electrical Connections: Designed with accessible plug-and-socket connections located on the exterior of the cover, drastically reducing the time required for installation, wiring, and routine maintenance.
Intuitive Operational Switches: Includes straightforward controls for Burner ON/OFF and manual 1st-2nd stage operation, providing operators with direct control when needed.
Flame Observation Window: Features a strategically placed viewing port that allows for quick, safe visual inspection of the flame status without dismantling the unit.
Installation Convenience: Thoughtfully equipped with built-in slide bars, making the processes of initial installation, inspection, and component maintenance significantly easier and safer.
Electromagnetic Interference (EMI) Protection Filter: Ensures stable and uninterrupted electrical operation by shielding the control systems from external electrical noise commonly found in industrial plants.
High Protection Rating: Certified with an IP40 protection rating, making the burner highly resilient and suitable for rigorous industrial environments.

Technical Specifications

Engineered to meet rigorous industrial standards, the specifications of this progressive gas burner ensure reliable integration with various boiler systems to meet specific project demands.

Specific Model Firing Range: 44 kW to 390 kW
Overall Series Firing Capability: 44 kW to 2290 kW (depending on specific model selection)
Standard Burner Head Length: 216 mm
Extended Burner Head Length: 351 mm
Operation Mode: Fully automatic two-stage progressive

Standard Equipment

Each burner is supplied with a comprehensive set of standard components to facilitate immediate installation and secure operation:

Gas train flange for secure fuel line connection
High-quality flange gasket for leak prevention
Flange fixing screws
Thermal screen to protect the boiler front plate
Screws for securely fixing the burner flange to the boiler
Electrical connection plugs for quick wiring
Comprehensive installation, operation, and maintenance handbook
Detailed spare parts catalogue for easy future ordering

Optional Accessories

To further enhance adaptability and meet specific project or environmental requirements, the following optional accessories are available:

Extended Head Kit: Ideal for boilers with thicker front doors or specific combustion chamber depths.
Spacer Kit: Provides additional clearance during installation if required by the boiler design.
Continuous Ventilation Kit: Ensures constant air circulation to meet specific environmental or operational demands.
Post-Ventilation Kit: Allows for continued cooling and purging of the combustion chamber after the burner shuts down.

Technical Datasheet

Please click the link below to download the Technical Datasheet for the Two Stage Progressive Gas Burner.

Technical Datasheet.pdf

Product Manual

Please download the official product manual below for detailed installation instructions, operational guidelines, and maintenance procedures for the Two Stage Progressive Gas Burner.
